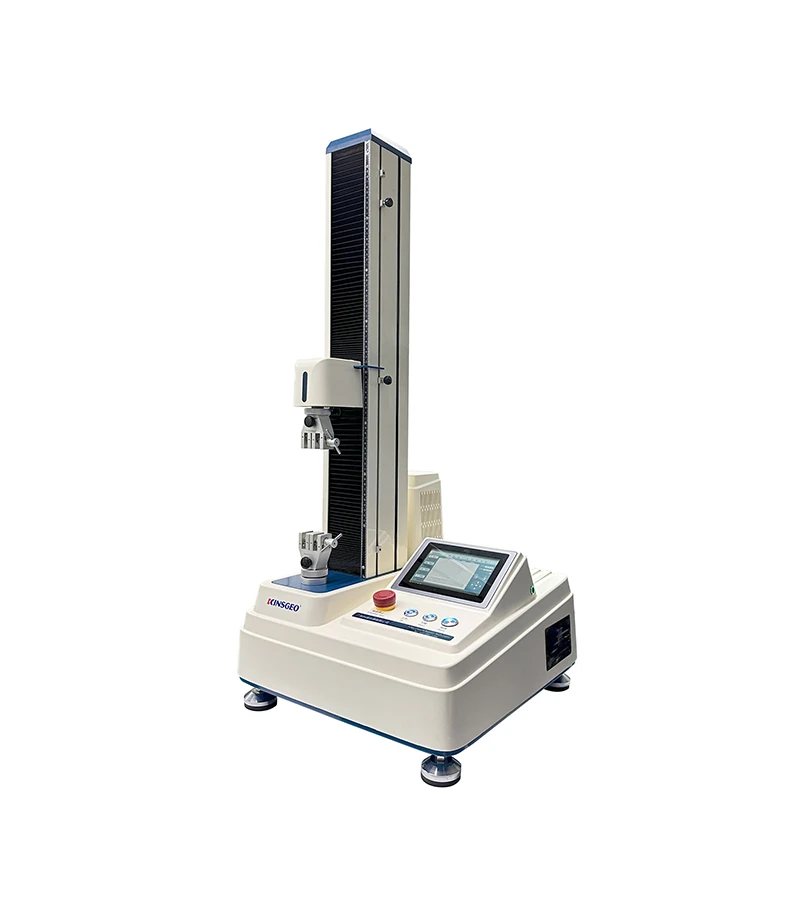

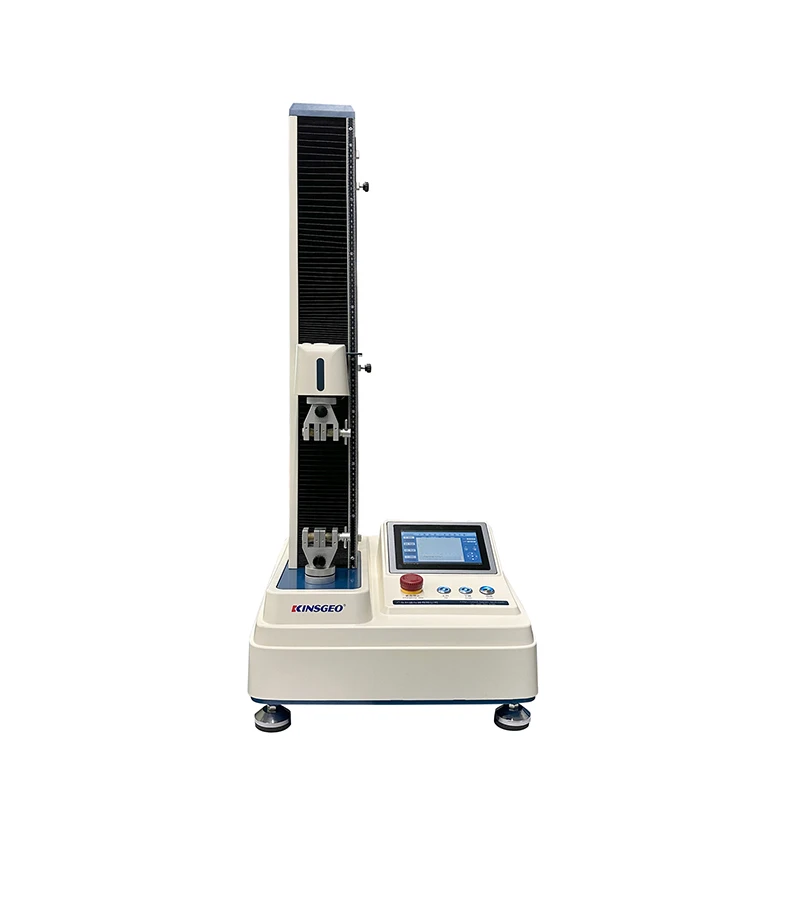

KJ-1065A-N High Precision Peel Strength Tester

KJ-1065A-N High Precision Peel Strength Tester

This machine is equipped with different fixtures and is suitable for testing the 90° peel strength, 180° peel strength, and release force of adhesive tapes, pressure-sensitive labels, and related adhesive products. It is designed to evaluate the adhesion performance of tape products and can also be used to determine the tensile strength of substrate materials.

In addition, the instrument supports customized test programming through software operation, allowing compression, tensile, and other testing applications.

Inquire Now Next Product

Product Features

● Capable of measuring peel strength as low as 0.5 g/25 mm, significantly improving quality control standards in the adhesive tape, protective film, release liner, and release film industries.

● The testing system independently developed by Kejian provides force measurement accuracy better than Class 0.5, ensuring excellent repeatability. Multiple load capacities are available for greater testing flexibility.

● Equipped with an imported Panasonic servo drive system and a high-precision ball screw transmission mechanism, providing displacement accuracy better than Class 0.5, freely adjustable test speeds, convenient operation, and stable performance.

● Specially designed gripping system optimized for peel testing applications, featuring angle adjustment to ensure the accuracy and consistency of test data.

● User-friendly operation guidance with data comparison and analysis functions, making the instrument easy to operate even for first-time users.

Compliance with Standards

ASTM D3330
FINAT
GB/T2792
PSTC

Operating Platform

● Touchscreen control with a clear display, high sensitivity, and easy operation.

● Newly developed software system featuring a streamlined workflow, smooth operation, and an intuitive user interface.

● Test data comparison and analysis, multi-unit conversion, customizable templates, and automatic report generation.

● Guided operation throughout the testing process, enabling users to learn while operating and helping resolve customer quality disputes

Technical Specifications

Item	Specification
Load Cell Capacity	5 kg (Standard)
Force Accuracy	±0.5% of Reading
Effective Force Range	0.02% – 100% FS
Display Resolution	0.01 gf
Test Speed	0.5~500mm/min
Speed Accuracy	±0.5% of Reading
Effective Tensile Stroke	650mm
Displacement Accuracy	±0.5% of Reading
Control System	Servo Driver + Servo Motor
Sampling Frequency	30 Hz Standard (Customizable up to 2000 Hz)
Force Resolution	500,000 counts at maximum load; full-range resolution remains unchanged without range switching
Software Control System	Full digital closed-loop control system capable of constant stress, constant strain, constant displacement, and other testing functions
Lifting Control	Computer digital control / Manual jog control / Touchscreen control
Protection System	Maximum load protection setting, automatic overload protection, software diagnostics, electronic limit protection, emergency stop
Return Function	Manual high-speed return to the initial test position; automatic return after completion of the test
Fixture Configuration	Standard: 180° Peel Fixture; Optional: 90° Peel Fixture, Tensile Fixture, Loop Tack Fixture, Puncture Fixture, Unwinding Fixture
Power Supply	AC 220V / 400W

Do We Need To Offer You Any Assistance?

Looking ahead, Guangdong Kejian Instrument Co., Ltd. will continue to uphold the core philosophy

+86 139 2947 7992

+86 139 2551 9875
sale056@kejian-tech.com

sale069@kejian-tech.com

Free consultation. No commitment required.

FAQ

Q:
Are you a factory or a trading company?

A:

We are a professional testing instrument manufacturer with over 20 years of experience, a national high-tech enterprise and a “Specialized, Sophisticated, Unique and New” certified enterprise.
Q:
What materials can your testing machines test?

A:

Our testing machines are suitable for peel,shear, tensile, release force and adhesive strength tests on adhesive tapes, self-adhesive labels, protective films, release papers, release films, foams, films, papers, rubbers and other materials.
Q:
Which international test standards do your equipment comply with?

A:

Our equipment supports major international standards including ASTM D3330, FINAT, GB/T 2792, PSTC, etc.
Q:
Is the software in Chinese or English?

A:

The software supports both Chinese and English interfaces, switchable freely for global users.
Q:
Is the operation difficult? Do you provide training?

A:

The interface is user-friendly. We provide free online training, video tutorials and English manuals.

Q:
How long is the warranty period?

A:

12-month warranty for the whole machine, with lifetime technical support.
Q:
How to solve equipment failures?

A:

We provide fast response via remote assistance, telephone and email. On-site service can be arranged if required.
Q:
Can accessories and fixtures be purchased separately

A:

Yes, we supply original accessories, fixtures and wearing parts for a long term.

RELATED PRODUCTS

KJ-1066D 5-station Computerized Servo Peel Strength Tester

This machine is mainly used to test the 180° peel strength and release force of adhesive tapes and self-adhesive labels, as well as the tensile and shear properties of materials. It is applied to evaluate the adhesion and physical properties of tape products. The equipment can perform five sets of tests simultaneously, greatly improving testing efficiency. Multiple samples from the same batch can be tested and compared at the same time. It also supports single or several groups of independent tests, with all test data displayed on the same coordinate graph.

KJ-1066D 3-station Computerized Servo Peel Strength Tester

This machine is mainly used to test the 180° peel strength and release force of adhesive tapes and self-adhesive labels, as well as the tensile and shear properties of materials. It is applied to evaluate the adhesion and physical properties of tape products. The equipment can perform five sets of tests simultaneously, greatly improving testing efficiency. Multiple samples from the same batch can be tested and compared at the same time. It also supports single or several groups of independent tests, with all test data displayed on the same coordinate graph.

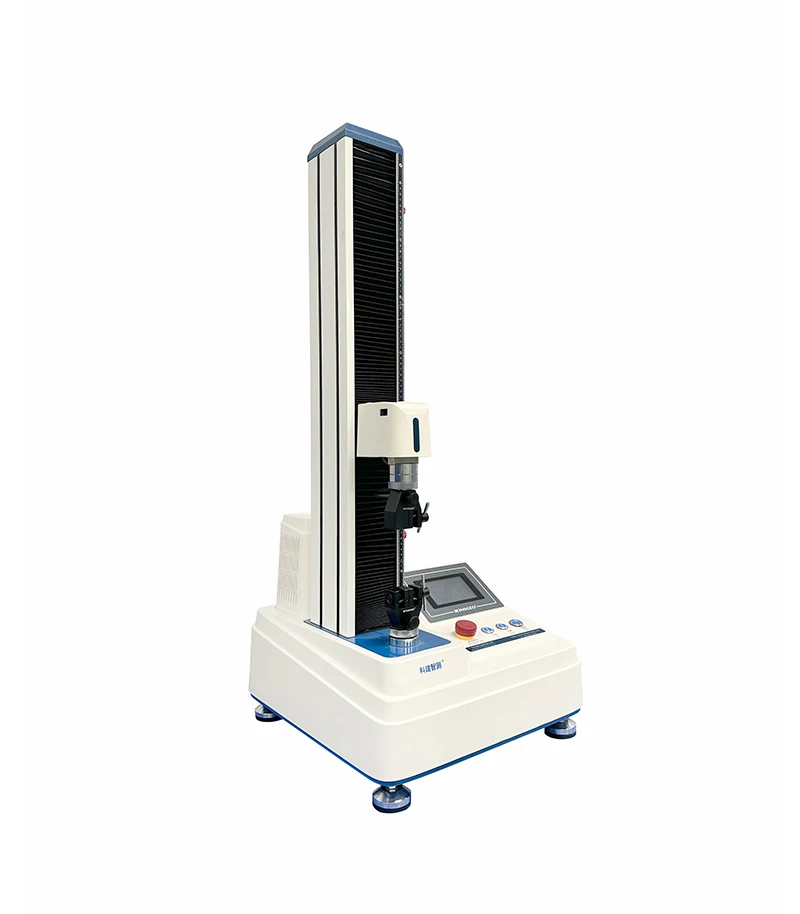

KJ-1065B-N Peel Strength Testing Machine
