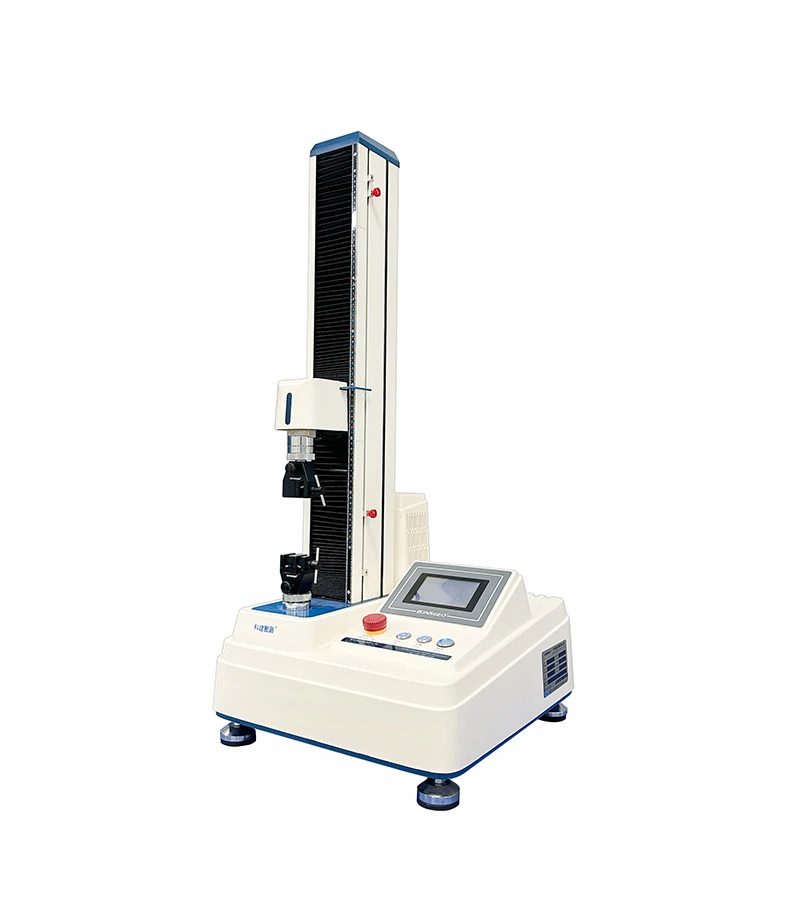

KJ-1065B-N Peel Strength Testing Machine

KJ-1065B-N Peel Strength Testing Machine

This machine is equipped with various jigs that allow testing the peel strength of adhesive tape and self-adhesive label products, including 90 degree peel strength and 180 degree peel strength, as well as testing the release force. This helps evaluate the adhesive properties of adhesive tape products. Additionally, it can test the tensile strength of the base material. Furthermore, this instrument can be operated and edited using software, enabling the execution of tests involving pressure and tensile forces.

Inquire Now Next Product

Product Features

1、The minimum testable value is 3g/25mm.
2、KEJIAN's professionally developed testing system offers superior force measurement precision of 0.5 class, enhanced repeatability, multiple range options, and greater flexibility in testing.
3、High-precision ball screw transmission, superior displacement accuracy of class 0.5, speed can be set freely, easy to use, and operation is smoother.
4、The clamping system, developed based on the characteristics of separation, features adjustable angles to ensure the accuracy of test data.。
5、Guidance for beginners, and guidance on analyzing data discrepancies

Standard

ASTM D3330
FINAT
GB/T2792
PSTC

Operating Platform

● The touchscreen is controllable, the view is clear, the touch response is sensitive, and it is easy to operate.

● The new software system features streamlined processes, smooth control, and ease of learning.

● Test data comparison and analysis, multiple unit conversions, template custom editing, and report generation.

Technical Specifications

ITEM	Parameter
Sensor Specifications	5KG (Standard configuration) 2KG 10KG 20KG 50KG(Optional)
Force accuracy	Indicated value ±0.5%
Test Range	0.02/100-100%
Display resolution	0.01gf
Test speed	50~500mm/min
Speed accuracy	Indicated value ±0.5%
Effective stretching space	650mm
Displacement accuracy	Indicated value ±0.5%
Control system	Stepper motor
Sampling frequency	Standard configuration 30Hz (customizable up to 1000Hz)
Software Measurement and Control System	The fully digital closed-loop control system can realize constant stress, constant strain, constant displacement, and experimental functions.
Lifting device	Computer digital control / manual jog control / touch screen control
Protective devices	Maximum load value can be set, automatic protection; software automatic diagnosis, electronic limit, emergency stop, etc.
Test Regression	Manually, it can return to the initial position of the experiment at the highest speed; automatically, it can return after the experiment ends.
Tooling and fixture configuration	Standard configuration includes a 180-degree peel force clamp; optional clamps include 90-degree, tensile, ring, piercing, and unwinding clamps.
Power	220V/400W

Do We Need To Offer You Any Assistance?

Looking ahead, Guangdong Kejian Instrument Co., Ltd. will continue to uphold the core philosophy

+86 139 2947 7992

+86 139 2551 9875
sale056@kejian-tech.com

sale069@kejian-tech.com

Free consultation. No commitment required.

FAQ

Q:
Are you a factory or a trading company?

A:

We are a professional testing instrument manufacturer with over 20 years of experience, a national high-tech enterprise and a “Specialized, Sophisticated, Unique and New” certified enterprise.
Q:
What materials can your testing machines test?

A:

Our testing machines are suitable for peel,shear, tensile, release force and adhesive strength tests on adhesive tapes, self-adhesive labels, protective films, release papers, release films, foams, films, papers, rubbers and other materials.
Q:
Which international test standards do your equipment comply with?

A:

Our equipment supports major international standards including ASTM D3330, FINAT, GB/T 2792, PSTC, etc.
Q:
Is the software in Chinese or English?

A:

The software supports both Chinese and English interfaces, switchable freely for global users.
Q:
Is the operation difficult? Do you provide training?

A:

The interface is user-friendly. We provide free online training, video tutorials and English manuals.

Q:
How long is the warranty period?

A:

12-month warranty for the whole machine, with lifetime technical support.
Q:
How to solve equipment failures?

A:

We provide fast response via remote assistance, telephone and email. On-site service can be arranged if required.
Q:
Can accessories and fixtures be purchased separately

A:

Yes, we supply original accessories, fixtures and wearing parts for a long term.
