Uses

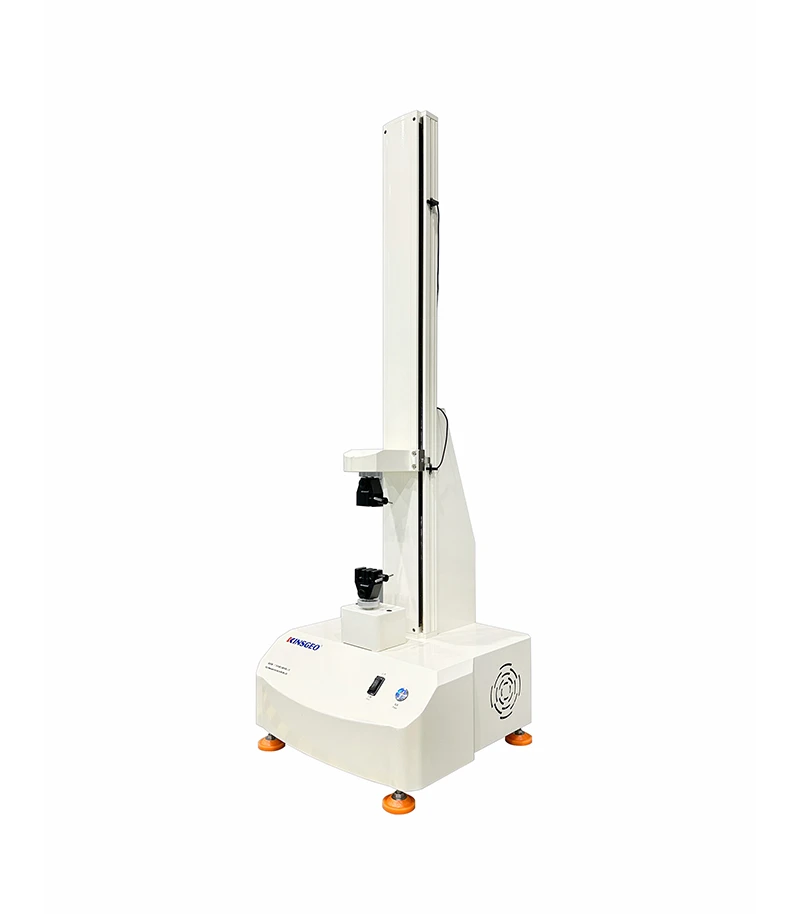

KJ-1069 High speed Computer type peel testing machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, labels,textiles, paper, board and finished products.
Character
1. That Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2. Have steady speed, high accuracy, powerful software function and easy operation.
3. Use the USA high-precision load cell.
Software Functions
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7. With many units of measurement, the metric system and English system can switch;
8. Have automatic calibration function;
9. Have user-defined test method function
10. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
Specification
|
Design Standards |
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632 |
|
Model |
KJ-1069 |
|
Range of speed |
0.5~2000mm/min |
|
Motor |
Japan Panasonic Servo Motor |
|
Stroke |
1400mm(Include grips) |
|
Capacity choice |
500kg |
|
Resolution |
1/250, 000 |
|
Accuracy |
±0.1% |
|
Operation method |
Windows operation |
|
Accessories |
One pair grips, software |
|
Weight |
80KG |
|
Dimension |
(W×D×H)58×58×160cm |
|
Power |
1PH, AC220V, 50/60Hz |
|
Stroke protection |
Upper and lower protection, prevent over preset |
|
Force protection |
system setting |
|
Emergency stop device |
Handling emergencies |
