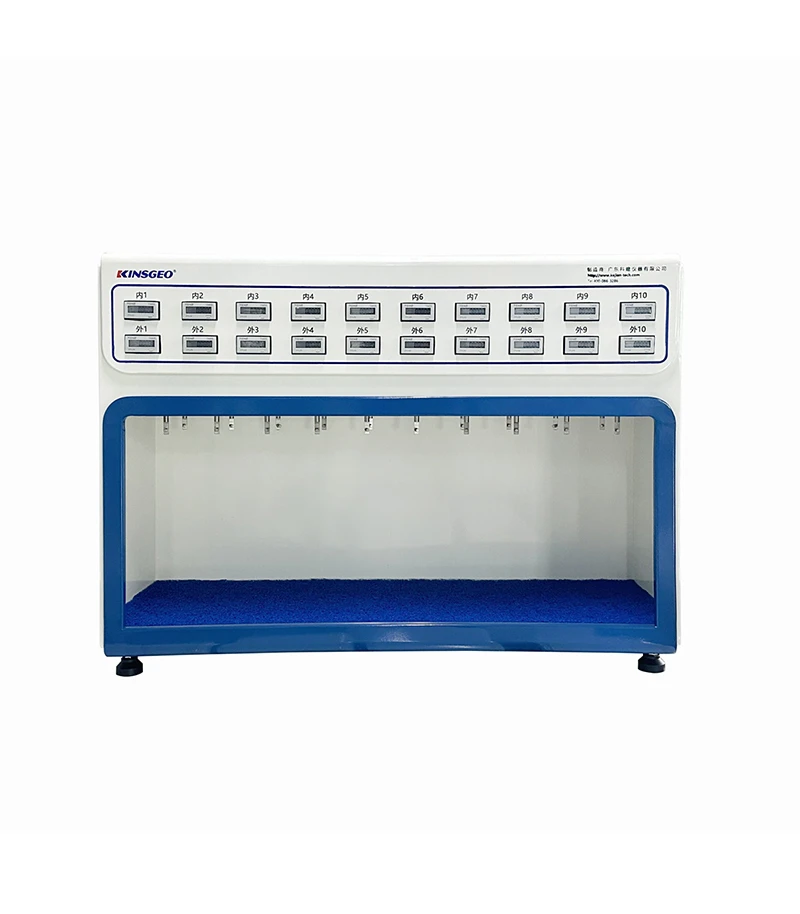

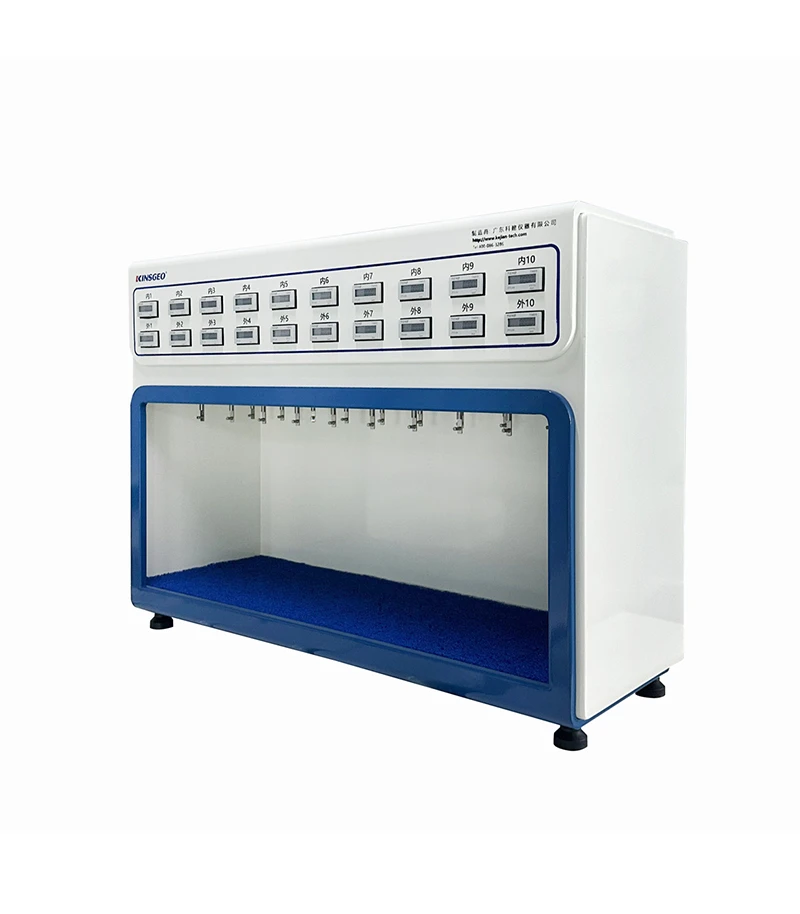

KJ-6000 Series Normal Temperature Tape Adhesion Tester

Test Standard

GB/T 4851-2014 "Test Method for Adhesive Tape Adhesion Property
CNS-11887、CNS-11888
PSTC-7 (Standard of the American Pressure-Sensitive Tape Association)
ASTM D3654/D3654M
FINAT FTM 9 (European Adhesive Label Association Standard)

Test Principle

Strictly adhering to industry standard procedures to ensure accurate and reproducible test data: Cut the tape into 1-inch-wide strips and apply them evenly onto the surface of a standard SUS#304 stainless steel plate. Use a 2 kg standard roller to roll the tape back and forth three times at a speed of 300 mm per minute, ensuring a tight bond without air bubbles. Subsequently, suspend the steel plate vertically on the testing machine frame and attach weights of specified masses to the free end of the tape. When the tape detaches from the steel plate surface, the timer automatically locks and records the total test duration, providing an intuitive assessment of the tape's adhesive durability and accurately reproducing its performance under actual usage conditions.

Product Features

● Intelligent and Hassle-Free: Equipped with an automatic memory function for sample drop timing, the system eliminates the need for real-time operator monitoring throughout the testing process, avoiding manual timing errors. This significantly enhances testing efficiency, reduces labor costs, and ensures the objectivity and accuracy of data recording.

● User-friendly operation: The overall structural design is scientifically rational, featuring an aesthetically pleasing appearance and straightforward operational procedures that require no specialized technical training. Ordinary staff can quickly master the system, making it suitable for both batch testing and routine quality sampling requirements.

● Broad compatibility: Supports multi-specification customization, allowing flexible adjustments to meet various testing requirements and comply with testing standards for different adhesive products, balancing practicality and versatility.

● Reliable and accurate: Core components are fabricated from high-quality materials, featuring exceptional timing precision and standardized testing procedures that effectively minimize deviations in parallel sample testing, providing robust evidence for quality assessment.

Application Scenarios

Widely used in various adhesive product industries such as adhesive tapes, protective films, self-adhesive tapes, labels, foam materials, and adhesives, this solution is also suitable for quality testing of adhesive products in packaging, electronics, and medical applications. It meets quality control requirements during production processes and supports the research and testing of innovative adhesive materials, enabling enterprises to select high-quality products, optimize formulations, and predict long-term product durability.

KJ-6000 Series Normal Temperature Tape Adhesion Tester

Technical Specifications

Temperature	Normal atmospheric temperature
Test fixture	10 sets, 20 sets, 30 sets (multiple specifications available for customization)
Test weight	500g or 1kg (choose one method; customization is available as needed)
Number of weights	10,20,30 (matched with the specifications of the test fixture)
Display mode	Timer: 99,999.9 hours/min (customizable)
Test steel plate	SUS #304 (standard configuration); supports customization with other materials as needed
Machine size	87x21.5x60.5cm	87x31.5x63.5cm	87x35x71cm
Machine weight	34kg	58kg	74kg

Recommended Accessories

KJ-6020 Standard Manual Pressing Wheel
KJ-6003A/KJ-6003B Standard Manual Sampler
