Use

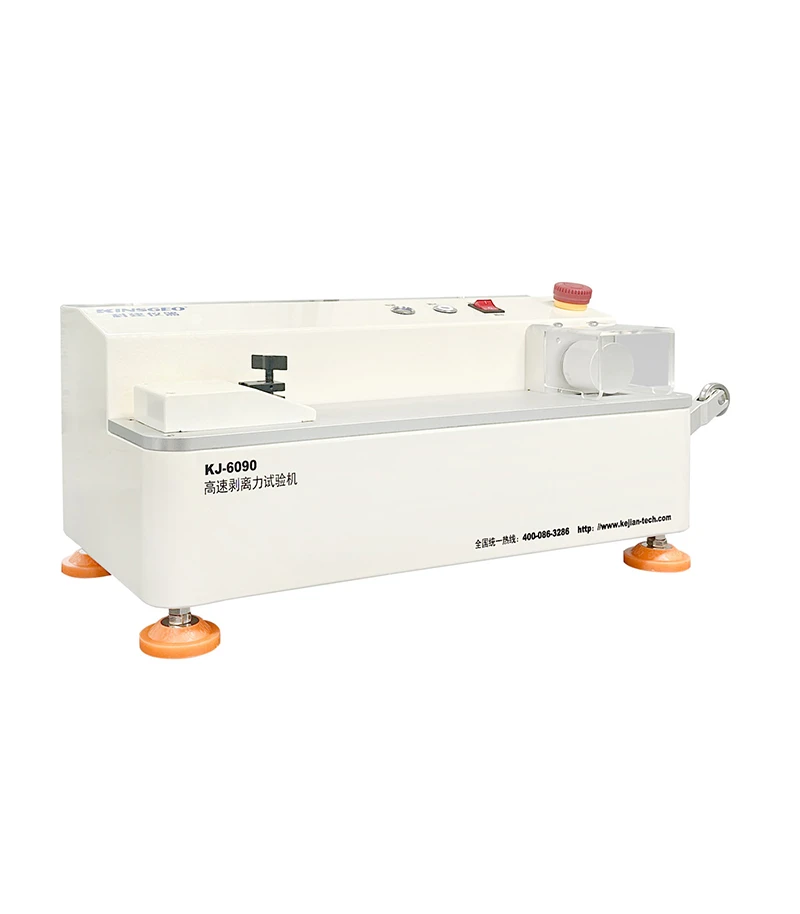

This machine for horizontal stripping force test, suitable for the stripping, shear performance test of adhesive, adhesive tape, detached film, nonadhesive, composite film, artificial leather, woven bag, film, paper and other related products. Customized special treatment, can do multi-angle stripping.
Minimum Testable
0.5g / 25mm, so that in the tape, protective film, paper, film and other electronic materials industry to improve the product quality level.
Equipment Advantage
1, High-precision double linear guide rail, combined with panasonic servo motor, high-speed and stable
2, Customized fixture can be stripped from multiple angles
Technical Parameter
| Capacity | 1 KG / 2 KG / 5 KG / 10 KG / 20 KG optional one |
| Accuracy level | 0.5 level |
| Maximum load | 20 KG |
| Effective load measurement range | 0.02 / 100-100% |
| Effective test width | 100mm |
| Effective stretch space | 500mm |
| Test speed | 0.5~30m / min |
| Speed accuracy | within ± 0.5% of the indicated value |
| Displacement measurement accuracy | within ± 0.5% of the indicated value |
| Acquisition and induction mode | American high-precision sensor |
| Control system | servo driver + servo motor |
| Test force resolution | maximum load 250,000 yards; internal and external separation, and the whole resolution unchanged |
| Software measurement and control system | full digital closed-loop control system, which can realize constant stress, constant strain, constant displacement and test functions |
| Test table lifting device | computer digital control / manual point movement control |
| Test table safety protection device | software automatic diagnosis, electronic limit |
| Test regression | manual can return to the initial test position at the highest speed, and automatically return automatically after the end of the test |
| Overload protection | can set the maximum load value, automatic protection |
| Capture configuration | customized according to the user product sample requirements |
| Dimensions | length 900 * deep 270 * height 648 (excluding rod height 270) |
| Motor | 400W |
| Host weight | about 55kg |
