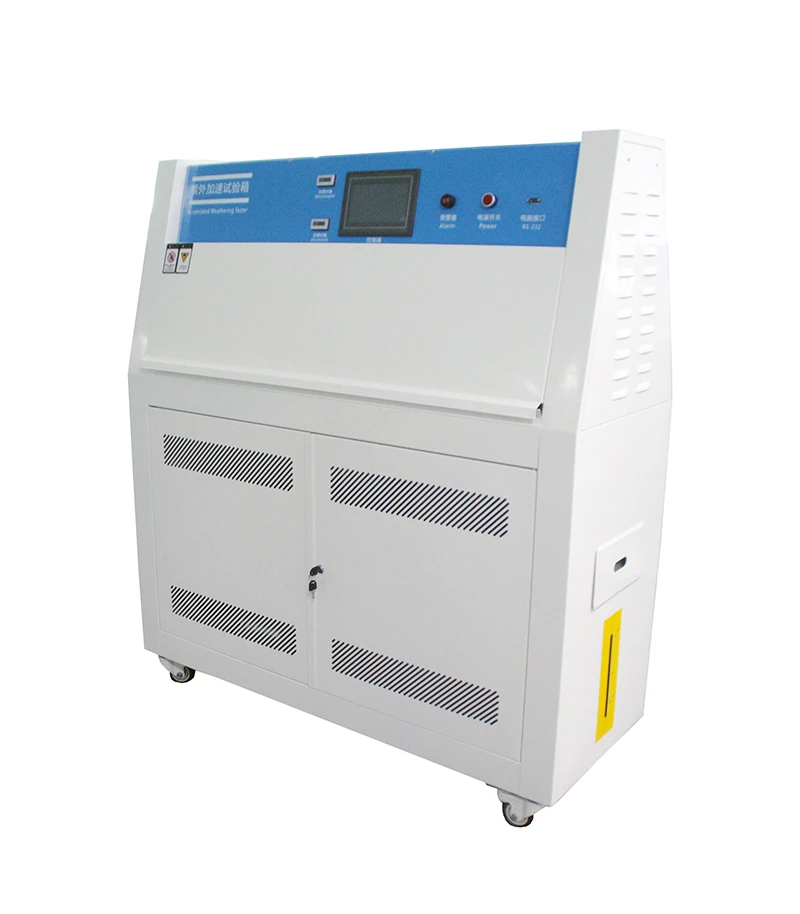

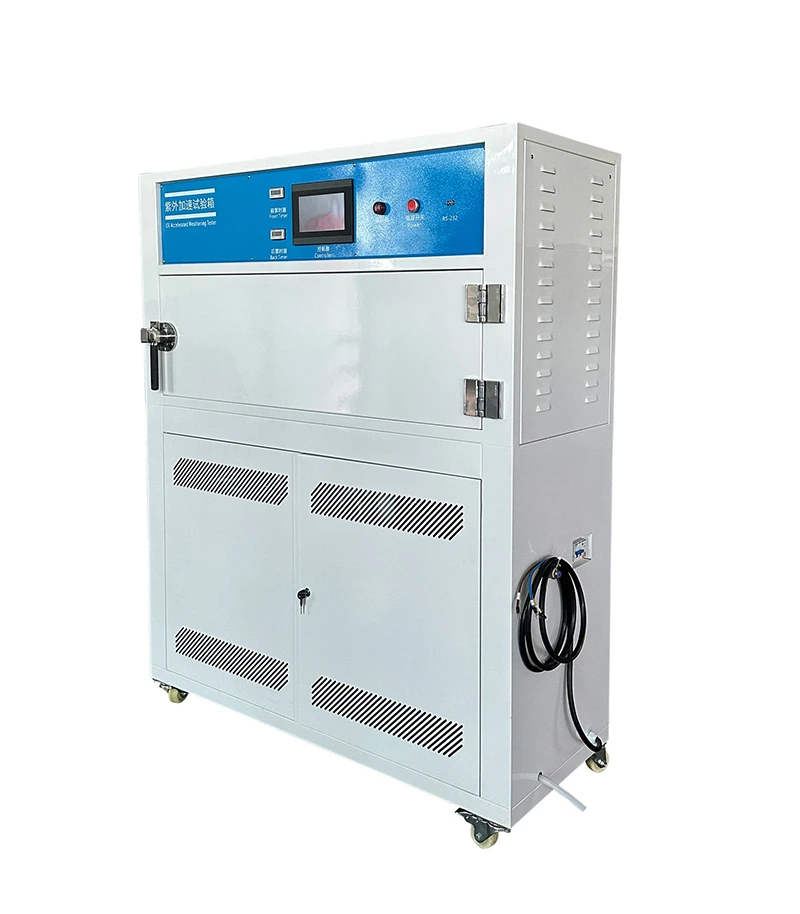

The KJ-2029-UV Ultraviolet Aging Test Chamber utilizes fluorescent UV lamps as its light source to accurately simulate aging conditions found in natural environments, including ultraviolet radiation, condensation, high temperatures, high humidity, and rain exposure. Through accelerated cycling tests, it rapidly evaluates the weathering resistance of materials.
Core Applications
Simulates outdoor ultraviolet aging conditions and automatically performs multi-cycle cyclic tests to evaluate performance changes in materials such as fading, cracking, pulverization, gloss loss, and aging.
Operation Specifications
1. Connect the power supply (AC 220V ±10%,50/60 Hz);
2. Connect the water supply (directly to the tap water outlet); use a ball valve to regulate the water inflow, with only half of the valve open during normal operation. A level switch automatically opens or closes the solenoid valve to fill the water to the preset level, thereby ensuring proper humidification and spray functions.
3. Before closing the box door, the specimen must be properly installed on the test stand (the size of the specimen must match that of the specimen holder).
4. Close the cover plate on the sample holder to prevent light leakage and secure the retaining ring.
5. Turn on the "Power" switch; (close both side cabinet doors).
Detailed Technical Parameters
| Temperature Range | Room temperature +15°C to 70°C |
| Humidity Range | ≥95% R.H. |
| Temperature Fluctuation | ≤±0.5°C |
| Temperature Uniformity | ≤±2°C |
| Humidity Fluctuation | ≤±2% |
| Humidity Uniformity | ≤±2% |
| Blackboard Temperature | 40°C to 65°C |
| Distance Between Light Tubes | 35 mm |
| Distance Between Sample and Lamp Tube | 50 mm |
| Lamp Power | 40W |
| Ultraviolet Wavelength | 340 nm / 313 nm |
| Simulated Condensation | Condensation system time is adjustable |
| UV Exposure / Condensation Time Range | 0–99 hours |
| Supported Sample Size | 150 × 75 (mm) |
| Number of Samples | Approximately 48 pieces |
| Test Duration | Adjustable from 0 to 9999 hours |
| Irradiance Range | Adjustable from 0.1 to 1 W/m² |
Features
● High-precision simulation: Accurately replicates outdoor aging conditions such as ultraviolet radiation, condensation, high temperatures, and high humidity.
● Premium materials: Inner liner made of SUS stainless steel; outer shell constructed with A3 steel plate coated with powder coating, offering corrosion resistance and long service life.
● Standard light source: Eight UV lamps are installed at the top, with wavelengths of 340 nm or 313 nm available.
● Efficient heating: A titanium alloy heating system that ensures rapid temperature rise and uniform temperature distribution.

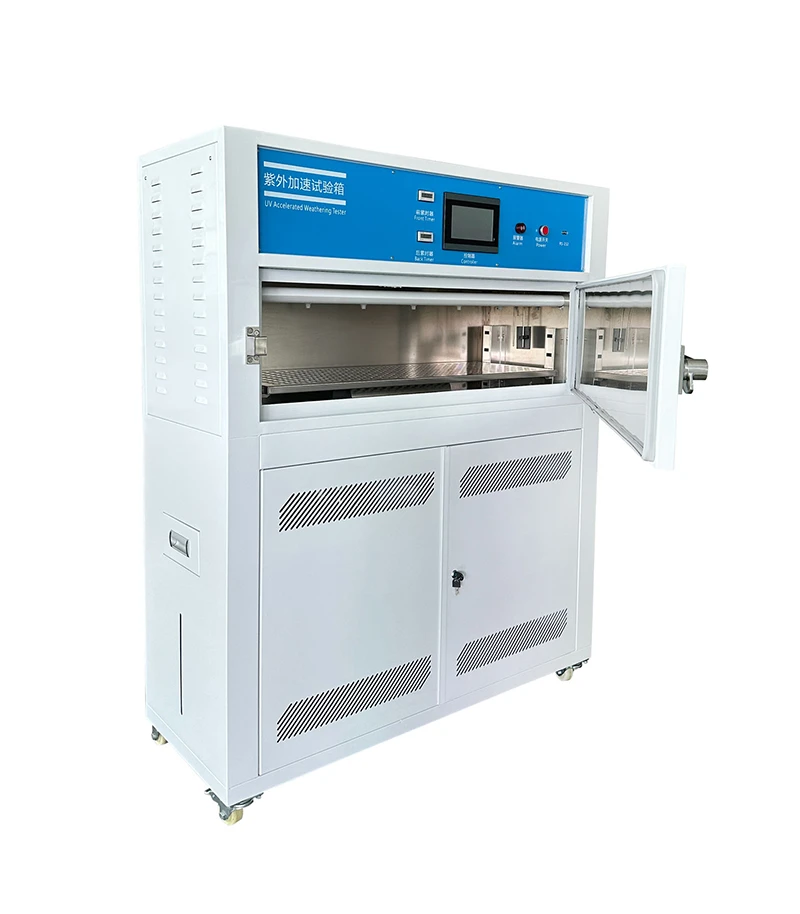

● User-friendly design: The one-way sliding door ensures easy opening and closing; the fixed footpad at the bottom provides stable and reliable support.
● Intelligent Control: Large touchscreen with program editing, automatic cycling, and data memory support.
● Large capacity: Can test approximately 48 standard samples (150×75 mm) at once.
● Irradiation adjustable: The irradiance can be continuously adjusted from 0.1 to 1 W/m², meeting various testing standards.
Installation and Placement Requirements
● Ultraviolet Protection: Ultraviolet radiation and ozone are harmful to human health. During testing, the chamber door must be closed and ventilation maintained.
● Grounding protection: The equipment must be reliably grounded and equipped with external protective devices.
● Test Restrictions: Testing of flammable, explosive, toxic, or highly corrosive substances is strictly prohibited.
● Professional maintenance: Non-professional personnel are prohibited from disassembly or repair; replacement parts must match the original model.
● Operational Safety: Opening the chamber door is strictly prohibited during testing to prevent ultraviolet burns.
● Hydropower Safety: The system may only be activated after verifying normal water levels and power supply to prevent dry burning and power outages.
Product Superiority
1. Robust construction: The material is durable, corrosion-resistant, and rust-proof, ensuring stable long-term performance.
2. Precise control: Excellent uniformity in temperature and humidity with minimal fluctuations, ensuring reliable data.
3. Professional Configuration: Standard UV lamps and an intelligent touch control system, with testing compliance with national standards.
4. Safe and reliable: Multiple protective layers and interlocking design ensure greater peace of mind during use.
5. Efficient and economical: Accelerated aging, time and energy savings, and low maintenance costs.
