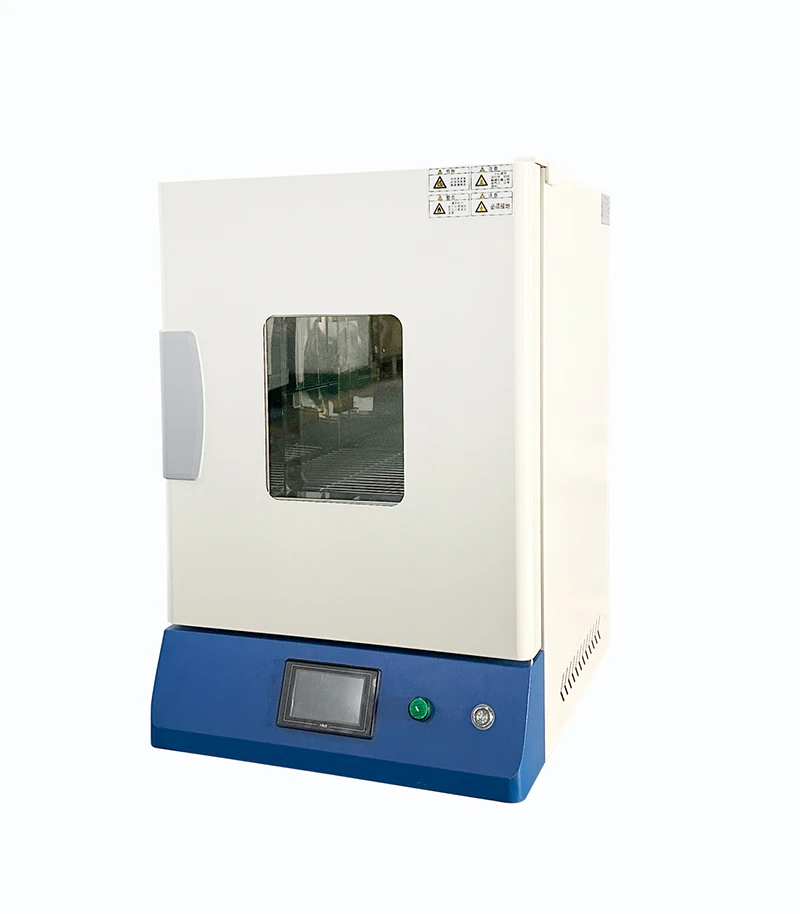

KJ-2010A Precision Oven
KJ-2010A Precision Oven
KJ-2010A Precision Oven
KJ-2010A Precision Oven

KJ-2010A Precision Oven

This equipment is suitable for heating processes such as baking, drying, sterilization, heat treatment, and aging testing in laboratories, chemical industries, pharmaceuticals, electronic components, epoxy resin crafts, electrical casting parts, magnetic accessories, and metal materials. It meets various application scenarios including general baking procedures, aging tests for electronic/plastic/chemical products, high-temperature stress relief, component development, and quality control.

Core Applications

It applies to general baking processes, aging tests for electronic components and plastic chemical products, high-temperature stress relief requirements, as well as relevant standards for component development and quality management across various industries.



KJ-2010A Precision Oven

Operating Procedures

1. Connect the power supply according to the specifications on the nameplate: AC-220/380V 50–60 Hz

2. There is no restriction on sample size; place the samples on the tray for testing.

3. Place the sample specimens on the tray.

4. Turn on the [power switch]button.

5. [Thermostat]button: Set to 200°C or any other specified temperature.

Detailed Technical Parameters

Inner box volume (L)

72L

150L

270L

480L

648L

1008L

Inner box dimensions

W×H×D(cm)

45×40×40

50×60×50

60×90×50

80×100×60

90×120×60

140×120×60

Outer size

W×H×D(cm)

68×105×59

85×125×71

86×160×68

110×174×78

112×190×90

195×198×82

Power

4.5KW

5KW

5KW

10KW

10KW

14KW

Voltage

220V

220V

220V

380V

380V

380V

Temperature control range

Room temperature +15°C to 200°C; Room temperature +15°C to 300°C; or custom temperature settings (maximum operating temperature ≤90%).

Function

Temperature fluctuation

±0.3 ℃

Controller Resolution

0.1°C unit display

Distribution Precision

±2℃(100℃)。

Controller Brand

Kejian Custom Controller

control method

P.I.D. Automatic Temperature Calculation

time control

0–999.9 hours (minutes); includes Timer and HOLD selection switches

heating-up time

100°C for approximately 15 minutes

Power KW

4.5--12KW

Material quality

inwall

SUS 304# steel plate

hull

Hot-dip rolling steel plate painting treatment

heat insulating material

High-temperature resistant, high-density ethyl acetate chloroformic acid foam insulating material

System air circulation method

Hot air internal circulation

Calorifier

Nickel-chromium alloy electric heating wire heater

Standard layout

One observation window, one test hole located at the rear, two partitions, and one power cord.

Safety device

Independent EGO overtemperature power-off and safety overload switch

Source

220V/380V  AC±10% 50Hz

Core Features

● Optimal Energy Efficiency: Upon reaching the set temperature, the PID intelligent temperature control system automatically switches to energy-saving mode, shutting down most heating components. This results in energy consumption reduced to approximately one-tenth that of comparable products, achieving an energy-saving efficiency of 80%–90%. The energy-saving effect becomes more pronounced with prolonged continuous operation.



● Durable and Clean: The inner tank is fabricated from SUS304 stainless steel using argon arc welding technology, producing no dust and meeting high-cleanliness baking requirements.



● Precision temperature control: PID automatic calculation combined with SSR temperature regulation delivers a fluctuation of ±0.3°C with a resolution of 0.1°C, and a temperature distribution accuracy of ±2°C at 100°C, ensuring stable and reliable data.



● Even heating: Forced horizontal air circulation combined with internal hot air circulation ensures rapid temperature rise (to 100°C in approximately 15 minutes), delivering uniform heat distribution to materials.



● Outstanding thermal insulation: Featuring first-class thermal insulation and heat isolation technology with excellent sealing performance, resulting in low shell temperature and minimal impact on ambient temperature.



● Reliable and Safe: Dual protection featuring independent overtemperature power shutdown and safety overload switch, ensuring automatic power interruption under extreme temperatures or heavy loads for enhanced operational safety.

Installation and Placement Requirements

● Ventilation distance: The distance between the unit and the wall or other equipment should be ≥60 cm to ensure proper heat dissipation.

● Installation surface: Level and vibration-free; adjust the leveling feet to keep the unit level.

● Environmental conditions: Avoid direct sunlight; ambient temperature should be between 10°C and 30°C.

● Place of use: In an isolated space, away from flammable, explosive, and corrosive chemicals.

● Cabling and piping: Power supply and drainage pipes should be as short as possible to facilitate maintenance.

● Handling specifications: Incline ≤30°; do not apply force while holding the electrical cabinet or motor components.

● Top prohibition: Do not place any objects to prevent falls and injuries.

Product Advantages

● Exquisitely crafted with a robust and durable structure

● High temperature control accuracy and excellent uniformity, with reliable and credible experimental data.

● The core components are selected from reputable brands, ensuring guaranteed quality.

● Multiple security protections ensure stable operation and reliable use.
