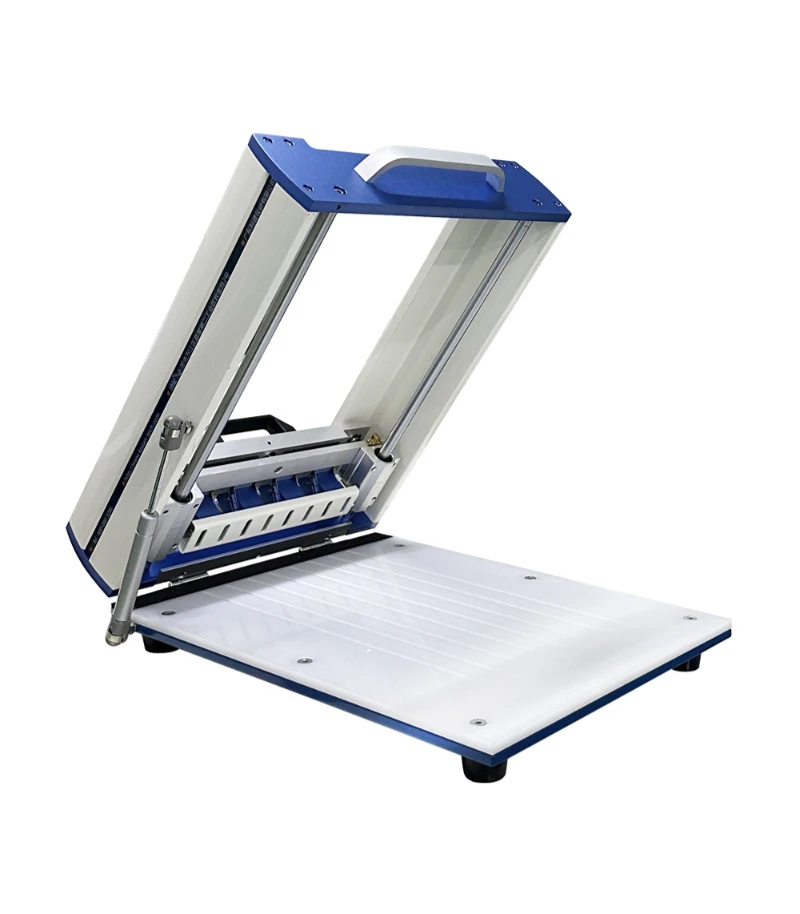

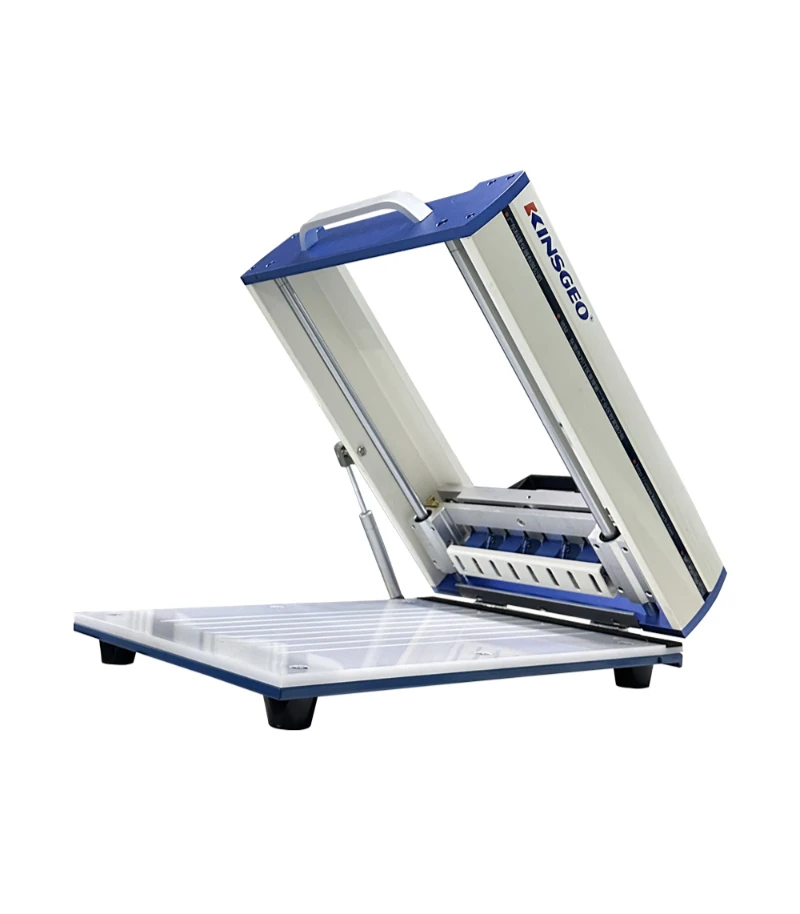

KJ-6003A-N Manual Cutter
Usage: This machine is suitable for sampling products such as adhesive tapes, protective films, and release films.
Usage: This machine is suitable for sampling products such as adhesive tapes, protective films, and release films.
Primary Usage
Raise the support stand, place the sample into the template, then lower the support stand to compress the sample, press down the knife holder to pull the knife holder at a certain speed, and as the blade glides over the product, it cuts out samples of equal length and width.
Main Characteristics
This machine securely holds the sample, with sharp and easily replaceable cutting tools. It is easy to operate and safe to use. It can handle multiple samples at once. The edges of the cut sample bars are flat and parallel, with no defects (observed under a 20x magnification). The cut sample bars ensure that the mechanical properties of the film are not compromised. The data on its tensile strength and breaking elongation rate is accurate, reliable, and consistent.
Technical Specifications: Unit: mm
|
Sampling thickness |
0.1—1.5mm |
0.1—0.25mm |
0.1-0.6mm |
0.1-0.4mm |
|
Sampling width |
25mm |
|||
|
Sample length |
300mm |
|||
|
sample Number |
6 items per group |
|||
|
Sampling accuracy |
±0.1mm |
|||
|
SIZE |
410*310*130 |
|||
|
WEIGHT |
8KG |
|||
