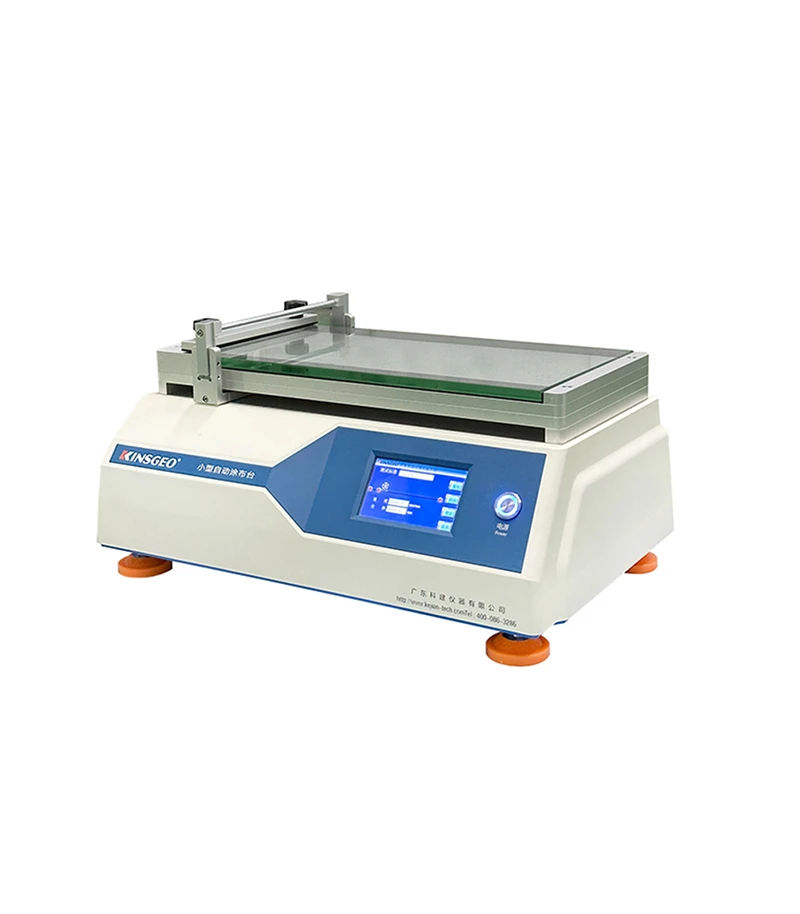

KJ-6017A Automatic Laboratory Coater

The KJ-6017A automatic small-scale experimental coating machine is a precise coating equipment specially designed for laboratory research and small-batch sample preparation. Its core mission is to assist laboratory personnel in conveniently and efficiently applying uniform and precise coatings, minimizing or eliminating experimental errors caused by inconsistent coating speed and pressure application during the coating process due to human operational differences. It ensures the stability, repeatability and reliability of experimental data, providing solid equipment support for scientific research experiments, formula development, process verification, and meeting the coating needs of various industries. It is an indispensable core coating tool for laboratories, balancing operational convenience and precision control.

Inquire Now Next Product

Application

The equipment has extremely strong adaptability and is widely applied in various experimental scenarios and related industries that require precise coating. It covers, but is not limited to:

Adhesive industry: Research and coating tests for solvent-based water-based adhesives, silicone pressure-sensitive adhesives, acrylic adhesives, etc., to precisely verify the coating performance and bonding effect of adhesives, and help optimize the formulation;
Coatings and inks industry: Uniformity tests for various coatings and inks, color and adhesion assessment, providing reliable support for product research and quality control, and shortening the research and development cycle;
Electronics and optics industry: Laboratory coating preparation for optical protection films, optical tapes, electronic adhesives, etc., suitable for high-precision experiments in flexible electronics, optical films, etc., ensuring the optical performance and usage effect of products;
Packaging and label industry: Coating tests for self-adhesive labels, which can simulate production processes, optimize coating parameters, and improve label adhesion and durability, suitable for small batch trial production and process validation requirements;
Other fields: It can also be used for small-scale coating experiments in special scenarios such as microfluidic chips, biomedical coatings, etc., suitable for various substrates and coating materials, meeting diversified experimental needs.

Core Advantages

Precise coating, with controllable error: It can be used in conjunction with a variable coating applicator: By adjusting the two differential devices above the coating applicator, the gap of the lower scraper can be adjusted in the vertical direction to control the final coating thickness. Due to the installation of a high-precision micrometer, the coating thickness can be adjusted within the range of 0 to 3500 μm, and the gap of the scraper can be finely adjusted in units of 10 μm, which is suitable for research projects that require assessment of subtle differences in film thickness.
 Flexible adaptation, with strong customization: The coating solution scheme equipped with a wired rod has been widely used in 52 sub-sectors, and it can support various testing and inspection projects such as run-off testing, leveling testing, color matching, color correction, covering power testing, fingerprint resistance testing, anti-static testing, and hardening testing. The rod coating itself is simple to operate, uniform in coating, easy to clean, and has a long service life. It is a widely used coating sample preparation scheme. We adopt the extrusion-type rod scheme, which is mainly applicable to coating processes with lower viscosity of the coating solution and better leveling performance. The extrusion-type coating rod is extruded on the stainless steel surface to form regular grooves, and the coating amount is controlled by the width and depth of the grooves. It is not prone to clogging during use and is easy to clean.
 Compact and portable, saving space: The equipment size is 560 × 365 × 265 mm (length × width × height), and the glass platform size is 480 mm × 250 mm (length × width). It is small in size, compact in structure, with a net weight of approximately 35 kg. It is easy to be placed flexibly in the laboratory, does not occupy too much experimental space, and can be easily used with other experimental equipment, adapting to the scenarios of laboratory miniaturization and multi-functionality.

Technical Parameter

Parameter Name	Specification
Overall Dimension	550mm (L) × 600mm (W) × 500mm (H)
Glass Platform Size	480 mm (Length) × 250 mm (Width)
Net Weight	Approx. 35 KG
Coating Speed	50–1000 mm/min, adjustable
Coating Accuracy	±2μm, leading precision with controllable tolerance
Coating Thickness	Depends on coating applicator used
Coating Width	Adjustable within 200 mm
Coating Applicators	Adjustable coating blade, extrusion wire-wound coating bar
