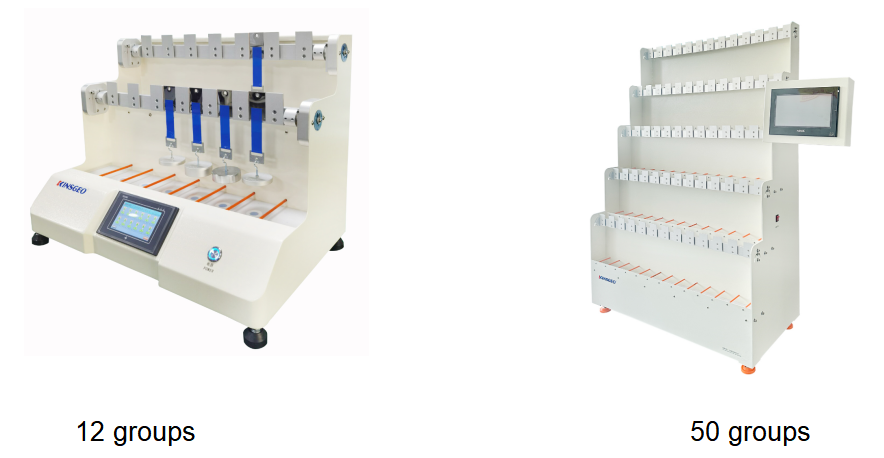

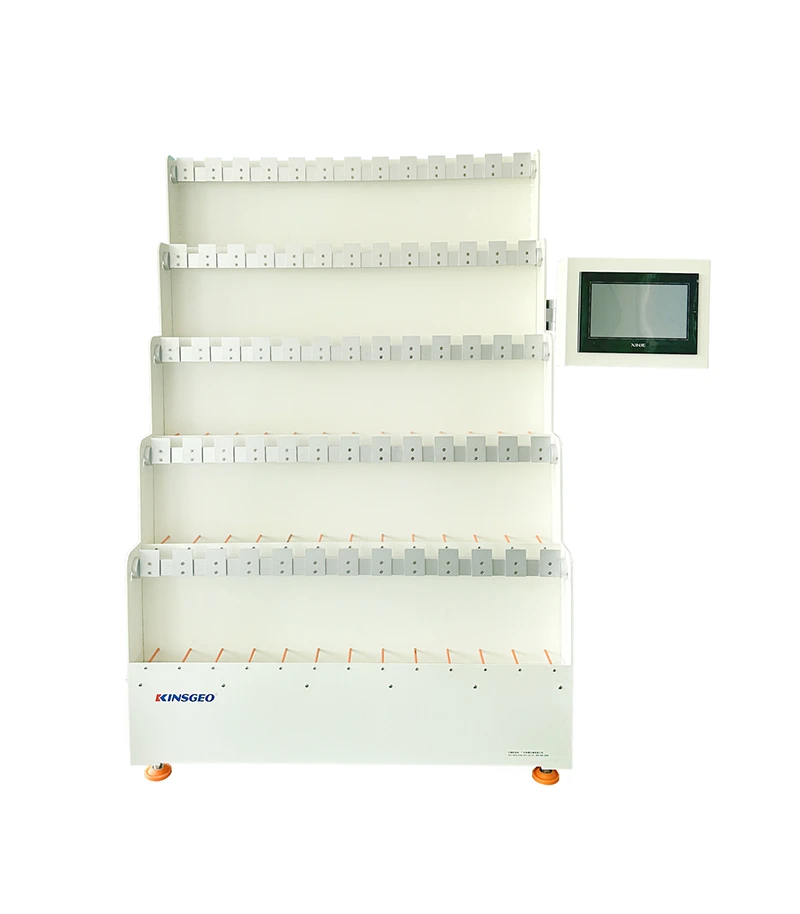

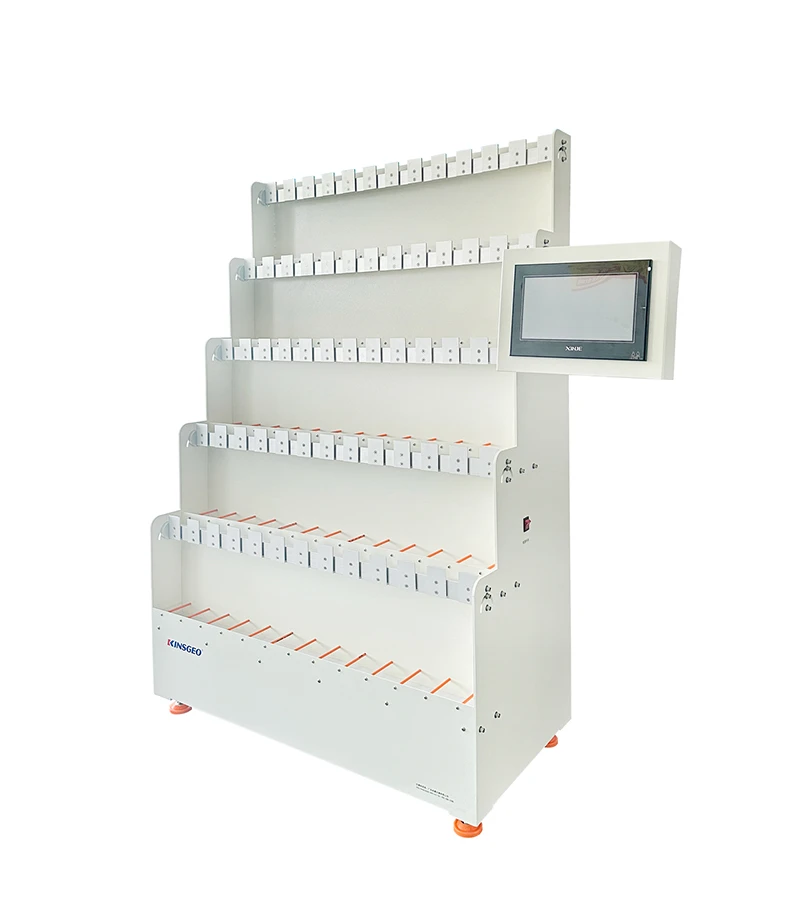

The KJ-6011 series multi-angle room-temperature tape adhesion test machine is a specialized testing equipment designed for the adhesive products industry. It primarily performs static load tests on tape adhesion performance, simulating real-world stress conditions while automatically recording the tape's holding time under constant loads.
Overview
The KJ-6011 series multi-angle room-temperature tape adhesion test machine is a specialized testing equipment designed for the adhesive products industry. It primarily performs static load tests on tape adhesion performance, simulating real-world stress conditions while automatically recording the tape's holding time under constant loads. This enables precise quantification of adhesion durability, providing scientific and reliable data support for product quality control and R&D. Serving as a critical testing tool for distinguishing ordinary tapes from high-performance variants, it also serves as a vital asset for enterprises to enhance their core competitiveness.
Test Standard
Test Principle
Strictly adhering to industry standard procedures to ensure accurate and reproducible test data: Cut the tape into 1-inch-wide strips and apply them evenly onto the surface of a standard SUS#304 stainless steel plate. Use a 2 kg standard roller to roll the tape back and forth three times at a speed of 300 mm per minute, ensuring tight adhesion without air bubbles. Subsequently, suspend the steel plate vertically on the testing machine frame and attach weights of specified masses to the free end of the tape. When the tape detaches from the steel plate surface, the timer automatically locks and records the total test duration, providing an intuitive assessment of the tape's adhesive durability and accurately reproducing its actual long-term bonding performance under real-world conditions.
Product Features
● Intelligent and Hassle-Free: Equipped with an automatic memory function for sample drop timing, the system eliminates the need for real-time operator monitoring throughout the testing process, avoiding manual timing errors. This significantly enhances testing efficiency, reduces labor costs, and ensures the objectivity and accuracy of data recording.
● User-friendly operation: The overall structural design is scientifically rational, featuring an aesthetically pleasing appearance and straightforward operational procedures that require no specialized technical training. Ordinary staff can quickly master the system, making it suitable for both batch testing and routine quality sampling requirements.
● Broad compatibility: Supports multi-specification customization, allowing flexible adjustments to meet various testing requirements and comply with testing standards for different adhesive products, balancing practicality and versatility.
● Reliable and accurate: Core components are fabricated from high-quality materials, featuring exceptional timing precision and standardized testing procedures that effectively minimize deviations in parallel sample testing, providing robust evidence for quality assessment.
Application Scenarios
Widely used in various adhesive product industries such as adhesive tapes, protective films, self-adhesive tapes, labels, foam materials, and adhesives, this solution is also suitable for quality testing of adhesive products in packaging, electronics, and medical applications. It meets quality control requirements during production processes and supports the research and testing of innovative adhesive materials, enabling enterprises to select high-quality products, optimize formulations, and predict long-term product durability.
Technical Specifications
|
Temperature |
Normal atmospheric temperature |
||
|
Test fixture |
10 sets, 20 sets, 30 sets (multiple specifications available for customization) |
||
|
Test weight |
500g or 1kg (choose one method; customization is available as needed) |
||
|
Number of weights |
10,20,30 (matched with the specifications of the test fixture) |
||
|
Display mode |
Timer: 99,999.9 hours/min (customizable) |
||
|
Test steel plate |
SUS #304 (standard configuration); supports customization with other materials as needed |
||
|
Machine size |
87x21.5x60.5cm |
87x31.5x63.5cm |
87x35x71cm |
|
Machine weight |
34kg |
58kg |
74kg |
Recommended Accessories

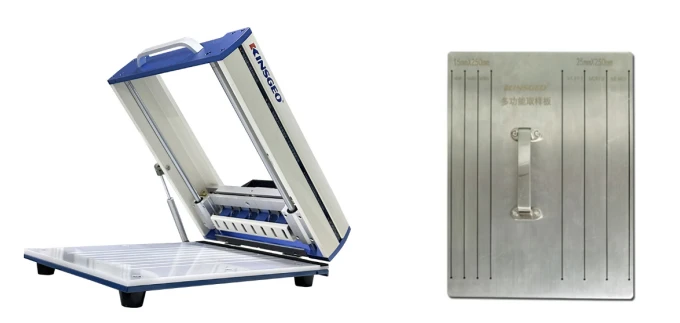

KJ-6020 Standard Manual Pressing Wheel
KJ-6003A/KJ-6003B Standard Manual Sampler
