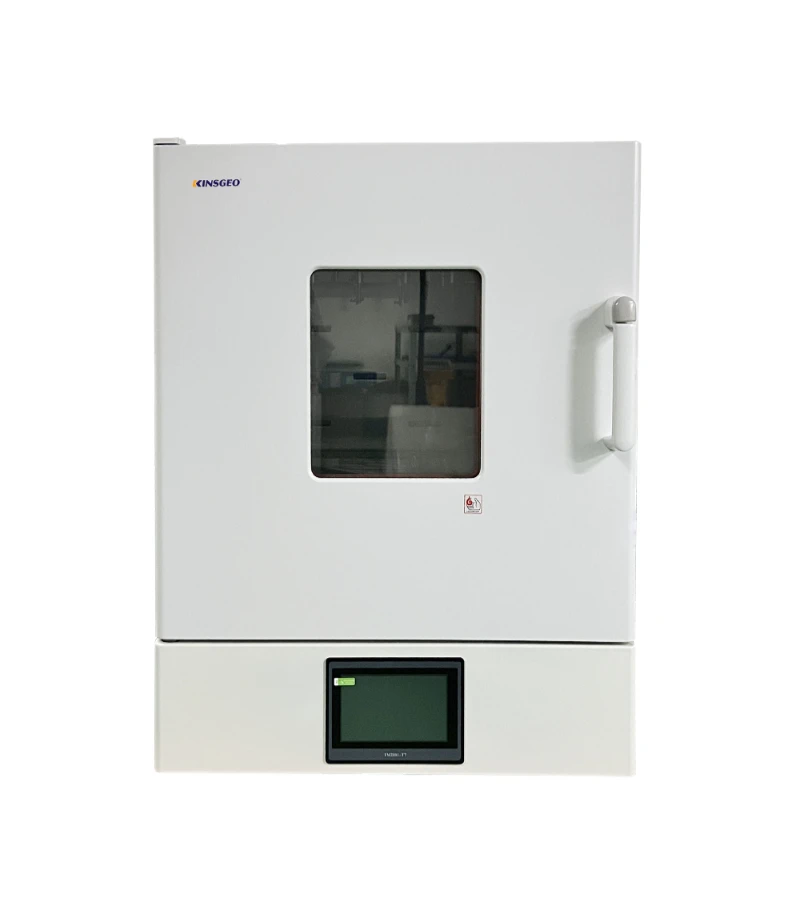

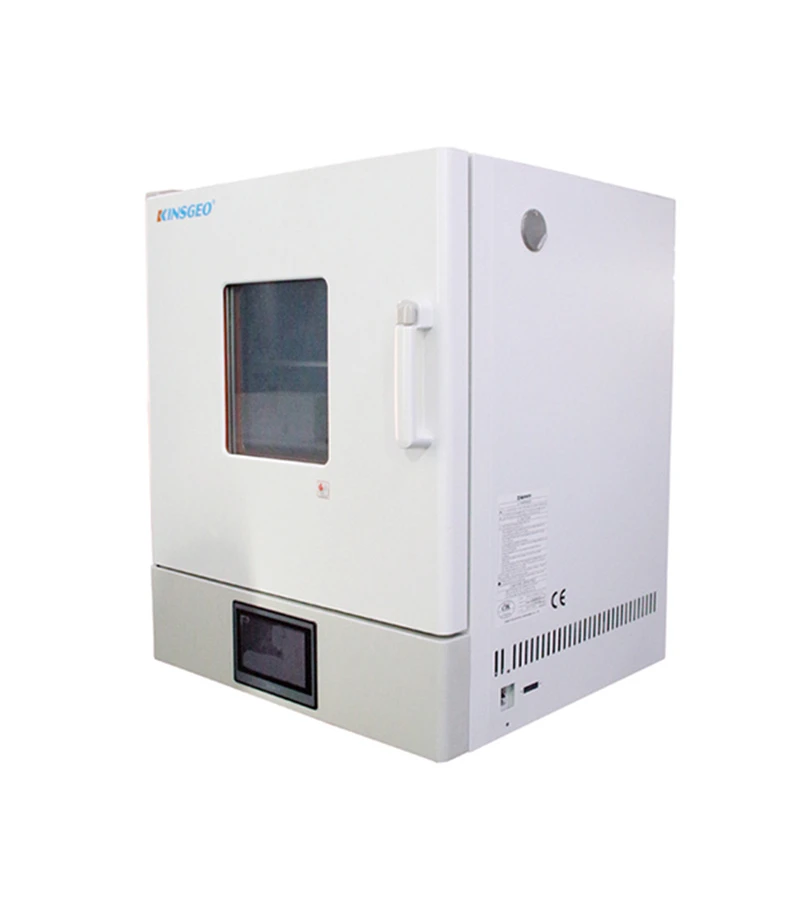

KJ-6013SAFT Pressure Sensitive Adhesive Tape Shear Failure Temperature Tester

KJ-6013SAFT Pressure Sensitive Adhesive Tape Shear Failure Temperature Tester

Uses: It is suitable for measuring the ability of pressure sensitive adhesive tape to maintain adhesion under certain weight in parallel direction under continuous heating. Shear strength (shear strength) is the ability of adhesive tape as a substrate applied to the same plane to resist static forces.

Meaning of application: The shear failure temperature refers to the temperature at which the bonded region of the sample is subjected to shear failure when the sample is loaded with standard weight.

Inquire Now Next Product

Overview of Test Methods

A strip of tape that is unwound at a controlled rate is attached to a standard steel plate. The steel plate is mounted vertically in an adjustable heating furnace and a standard weight is suspended from the free end of the tape. The temperature of the heating furnace increases steadily at a controlled rate to determine the time of shear failure.

Reference Standard

2.1 ASTM standard

D 3654/D 3645 M pressure sensitive adhesive tape adhesion test method

D 4498 Standard test method for heat break temperature during shearing of hot melt adhesives

2.2 PSTC standard

2.2. 1 PSTC-17 Test method for shear failure temperature of pressure sensitive adhesive tape

2.3 PSTC-107 CEN standard

2.3.1 EN 1943 Self-adhesive tape -- Determination of static shear strength

2.3.2 EN 10088/2, 2R—Specification requirements for stainless steel plates

2.4 ISO standard

2.4.1 ISO 29863 Determination of static shear strength of self-adhesive tape

3 Afera standard

3.1 Afera 5012 Determination of static shear strength of self-adhesive tape

Specification

Temperature Control Range	Room temperature +10℃ ~ 200℃
Control Mode	Microcomputer P.I.D. automatic temperature control calculus
Temperature Resolution	0.1℃ unit display
Control Accuracy	±0.3℃
Heating Rate	0.5℃/min
Distribution Accuracy	±1% (at 100℃)
Weight Accessories	1 kg, 8 groups
Electric Control	All specimens fall off, buzzer sounds (with switch), and automatically cuts off heat
Manufacturing Material	Internal: SUS#304 stainless steel plate; External: Paint coating
Chronograph (Timer)	Electronic LCD display, automatic retention time, 99999.9 hours (or minutes can be set)
Weight and size	80 kg; 140 × 55 × 85 cm
Power Supply	1Ø, AC 220V / 50Hz
