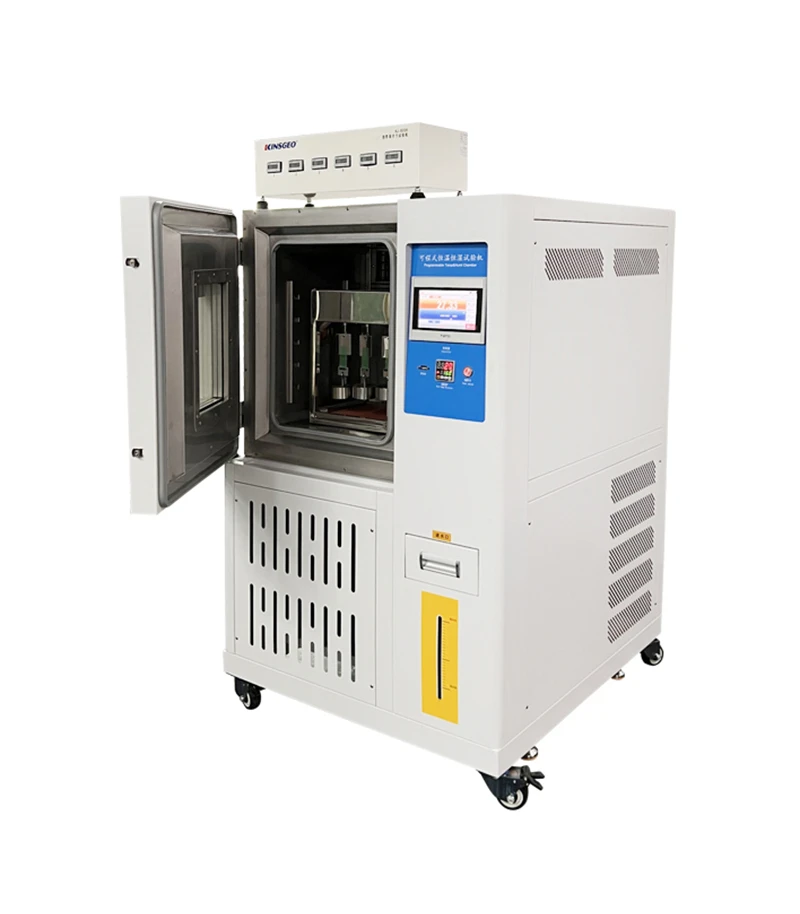

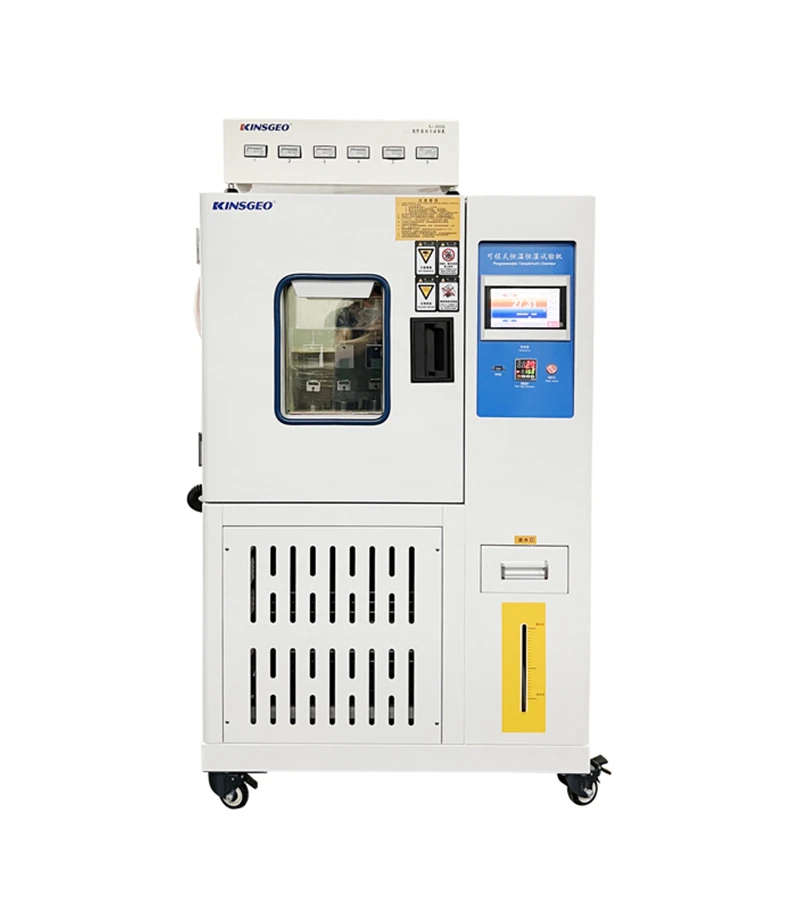

KJ-6014D Non- contact Hot/Cold Tack Tester

Application

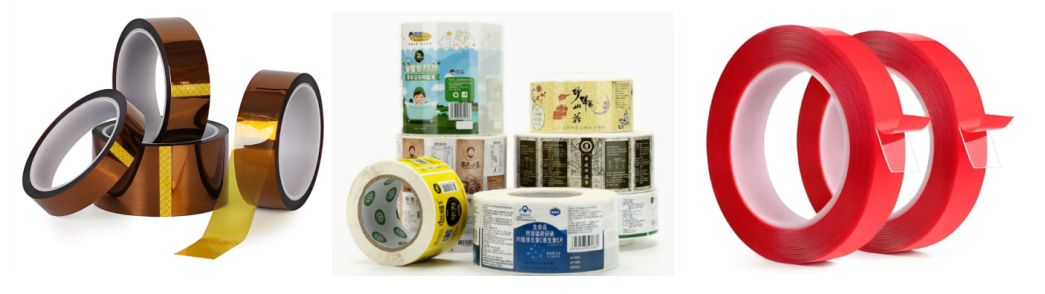

Suitable for products such as adhesive tapes, protective films, self-adhesive materials, labels, adhesives, etc., to test their adhesive stability in both high and low temperature environments.

KJ-6014D Non- contact Hot/Cold Tack Tester

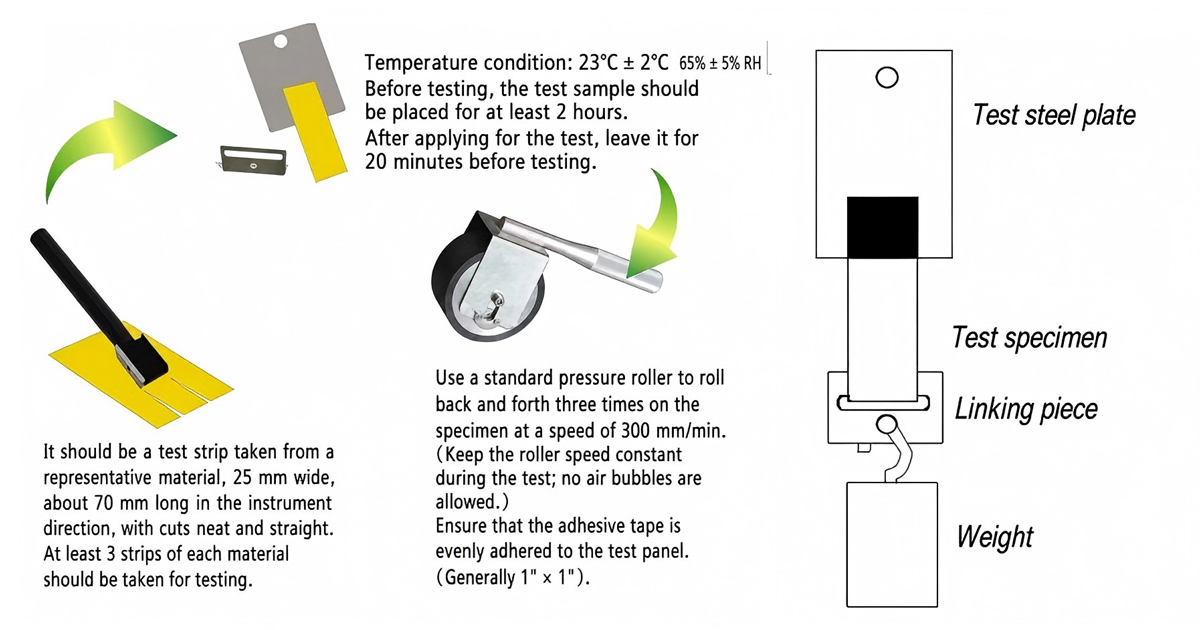

Operation Specification

KJ-6014D Non- contact Hot/Cold Tack Tester

● Cutting: According to the test requirements, cut the material of the standard width (1 inch);

● Adhesion: Attach the cut material to the test board;

● Rolling: Roll it three times with the standard rolling hand roller;

● Placement: Place it in a natural state for 20 minutes or as per the customer's requirements;

● Fixation: Hang the test board on the hook of the machine, connect it with a connecting piece and attach weights below.

● Turn on the power and press the power button (power switch)

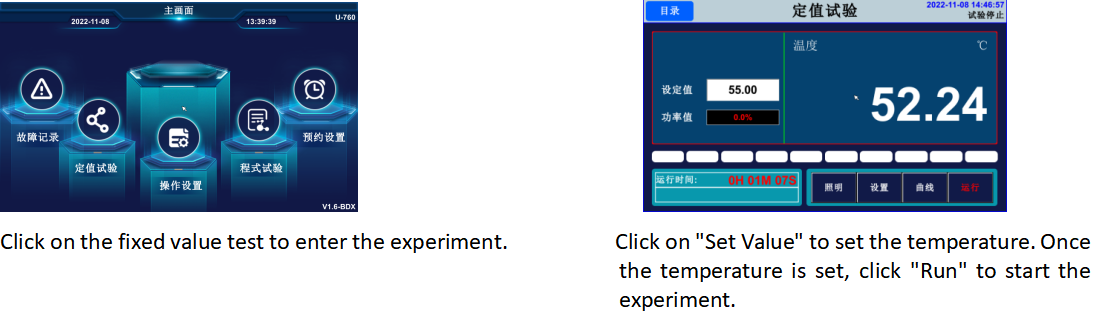

Setting operation:

KJ-6014D Non- contact Hot/Cold Tack Tester

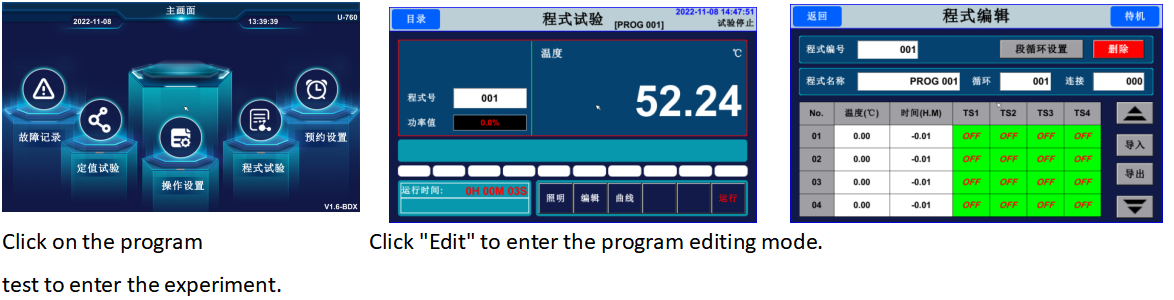

Procedure operation:

KJ-6014D Non- contact Hot/Cold Tack Tester

Core Feature

1. Non-contact testing: No contact interference, resulting in more accurate test results.

2. Intelligent temperature control and energy saving: The cooling power can be automatically adjusted from 0% to 100%, reducing energy consumption by 30%.

3. Stable and durable structure: Numerical control precision processing, smooth operation and long lifespan.

4. High-quality inner box material: SUS304 stainless steel, resistant to corrosion, easy to clean, and resistant to cold and heat fatigue.

5. Efficient insulation and sealing: High-density polyurethane foaming + silicone rubber overall sealing, with strong insulation and sealing performance.

6. Clear observation window: Vacuum explosion-proof electric heating anti-frost + built-in lighting, allowing real-time observation of the sample.

7. Uniform temperature field: Dual circulation air duct, with uniform temperature distribution.

8. Brand compressor: Taikang fully enclosed refrigeration unit, with stable performance and anti-counterfeiting verification capabilities.

Technical Parameter

Inner box volume (L)		80L	150L	225L	408L	800L
Inner box dimensions W×H×D (cm)		40×50×40	50×60×50	75×60×50	85×80×60	100×100×80
Outer box dimensions W×H×D (cm)		93×142×105	104×157×116	124×162×113	133×182×148	156×197×139
Power:		5KW	6KW	8KW	9KW	16KW
Voltage		220V	380V	380V	380V	380V
Number of holding force		6 sets	12 sets	18 sets	21 sets	30 sets
Weight of weights		500g/1000g (Optional)
Accuracy of gauge length		1mm
Test steel plate		SUS 304 (Compliant with ASTM D3330 GB/T2792)
Timer		Combined control of temperature and humidity / Independent timer for timing
Temperature and humidity control range		-40℃～150℃ RH20%-98%
Performance	Temperature and humidity fluctuation degree	±0.5℃；±2.5%RH
	Temperature and humidity deviation	±0.5℃-±2℃；±3%RH（>75%RH）; ±5%RH(≤75%RH)
	Controller resolution	±0.3℃；±2.5%RH
	Controller brand	Kejian custom programmable touch screen controller
	Heating-up time	Approximately 30 minutes at 100℃
	Cooling-down time	Approximately 1℃/min from room temperature to -40℃
Note: The above performance indicators are the measured values under the conditions of an ambient temperature of +25℃, relative humidity of ≤60%, and without sample.
Material	Inner wall	SUS 304# steel plate
	Shell	Cold-rolled steel plate with paint treatment
	Insulation material	High-temperature resistant high-density chloroacetic acid ethylene carbonate insulation material
System air circulation mode		Centrifugal fan - Broadband forced airflow circulation (Top out, Bottom in)
Cooling method		Single-stage mechanical compression refrigeration (Or binary cascade refrigeration)
Refrigerator compressor		Fully enclosed piston-type French Tyco compressor
Refrigerant		R404A or American DuPont environmentally friendly refrigerant (R23 + R404)
Condensation method		Air cooling
Heater		Nickel-chromium alloy electric heating wire heater
Humidifier		Semi-closed steam humidifier
Water supply method		Fully automatic circulation water supply
Standard configuration		Observation window 1, 50mm test hole on the left side 1, 1 lamp inside the PLC box, 2 partitions, Dry and wet bulb gauze 1 package, fuse 3, power cord 1,
Safety devices		No fuse switch, [Compressor overload, refrigerant high and low pressure, excessive humidity and temperature] protection switch, fuse fault warning system
Power supply		220V/380V AC±10% 50Hz

Installation and Placement Requirements

1. Ventilation spacing: The distance between the body and the wall / other equipment should be ≥ 60cm to ensure heat dissipation.

2. Installation floor: Flat and without vibration. Adjust the leveling feet to make the body level.

3. Environmental conditions: Avoid direct sunlight. The environmental temperature should be 10℃~30℃, and the humidity should be 70% ± 10% RH.

4. Usage place: Independent space, away from flammable, explosive, and corrosive chemicals.

5. Wiring and piping: Try to shorten the power supply and drainage pipes to facilitate maintenance.

6. Handling norms: Inclination ≤ 30°. Do not apply force to the electrical box or motor part by hand.

7. Top prohibition: Do not place any debris. To prevent falling and causing injury.

Product Superiority

1. Excellent craftsmanship: The structure is sturdy and the workmanship is meticulous, ensuring high stability over a long period of use.

2. Precise temperature control: The temperature and humidity fluctuations are minimal and the uniformity is excellent, resulting in reliable and accurate test data.

3. Brand components: The core components are made with internationally renowned brands, featuring low failure rates and long lifespans.

4. Safe and reliable: Multiple safety protections are in place, including audible and visual alarms, ensuring worry-free use.

5. Operational convenience: Touch control operation and program-based control are available, supporting automatic testing and data export.
