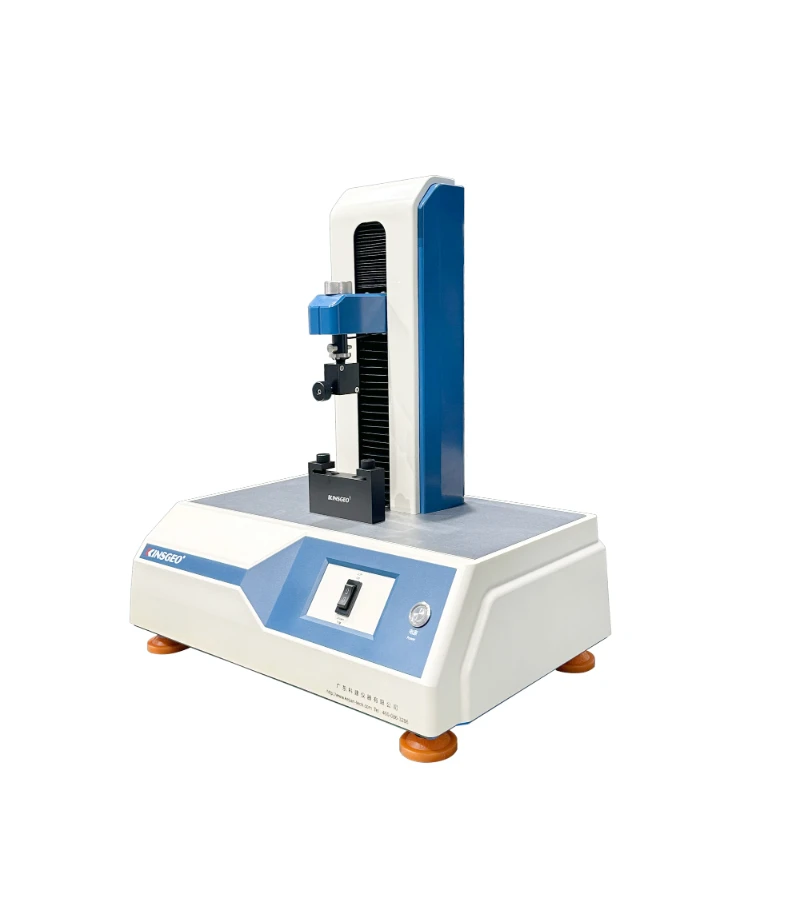

KJ-6031N Computerized Loop Tack Tester

Core Product Features

Precision and Efficiency, Authoritative and Compliance-Compliant

● The equipment, featuring advanced mechatronic design, demonstrates multiple advantages in detection accuracy, operational user experience, and standard compatibility, ensuring comprehensive precision and efficiency in testing processes. This enables enterprises to achieve refined quality control.

● Precision breakthrough addresses industry pain points: It completely resolves the issues of inaccurate and inconsistent initial adhesion test data. Compared to the traditional rolling method, the ring testing method yields more consistent results, effectively minimizing the impact of factors such as temperature and human intervention on test outcomes, thereby significantly enhancing the reliability and reference value of the test data.

● Digital presentation delivers intuitive and reliable results: The entire testing process is fully automated, with test results displayed simultaneously in both precise data and dynamic graphics, clearly illustrating the entire force variation trajectory. This ensures complete authenticity and accuracy of the tests, eliminating the need for manual calculations, and enabling direct application for data archiving and process optimization.

● Multi-standard compatibility ensures authoritative and reliable data: Fully compliant with numerous international and domestic authoritative standards, it ranks among global standard testing frameworks, guaranteeing that testing procedures and data accuracy meet industry specifications. This results in widely recognized test outcomes, meeting diverse enterprise needs including exports, compliance quality inspections, and R&D comparisons.

Compliance Standards

Authoritative Endorsement, Compliance Without Concern

International standard:

● FINAT Test Method No.9 (Loop tack measurement, the circular initial tack test method established by the International Label Manufacturers Association)

● PSTC-16 LOOP TACK (Standard for testing the initial adhesion of pressure-sensitive adhesives)

● ASTM D6195-03 (Standard Test Methods for Loop Tack: Standard Test Methods for the Initial Adhesion Force of Pressure-Sensitive Tape Loops)

● National Standard: GB/T 31125-2014 "Test Method for Initial Adhesion of Adhesive Tape-Ring Method"

Test Scope

Comprehensive coverage across multiple product categories, adaptable to diverse scenarios

The device has a wide range of applications, primarily used for determining the initial adhesion strength of various adhesive products, precisely meeting the testing requirements of multiple industries such as electronics, packaging, and medical applications. Specific test objects include:

Products such as electronic tapes, protective films, self-adhesive labels, various adhesives, medical patches, pharmaceutical packaging labels, and anti-counterfeiting sealing films allow for precise quantification of their initial adhesive strength, providing critical data support for product quality assessment and process optimization.

KJ-6031N Computerized Loop Tack Tester

Testing Principle

Scientifically rigorous and operationally standardized (with added test flowchart)

The device operates based on the core logic of cyclic initial adhesion testing, featuring a scientifically rigorous and highly automated process that effectively minimizes human operational errors, ensuring stable and reliable test results. The specific testing principle is as follows:

The sample is formed into a ring shape (with the adhesive side facing outward). After complete contact with the standard float glass testing plate at a constant speed of 300 mm/min, the instrument automatically reverses the movement of the ring-shaped sample relative to the test plate, achieving complete separation at the same constant speed. The maximum force generated during this process represents the initial adhesive force of the sample. This testing method accurately replicates the actual initial adhesion conditions encountered during product use.

Core Technical Parameters

Precision-controlled and highly efficient detection capability

Measuring range	0–100 N, meeting the initial adhesion testing requirements for most adhesive products
Certainty of measurement	The measurement error is less than ±1%, ensuring precise data with controllable inaccuracies.
End of test	Automatically record the maximum tensile force required for the annular sample to detach from the stainless steel test plate, while simultaneously documenting the sample failure mode. The data is complete and traceable.
Measurement speed	300 mm/min, compliant with standard requirements, ensuring test consistency
Speed Accuracy	The error is within ±1%, with stable operation and controllable speed.
specimen size	125.0 mm × 25.0 mm, meeting the requirements of standard test specimens to ensure standardized testing.
Test plate size	100.0 mm × 25.0 mm × 2.0 mm, standard float glass test plate, ensuring uniform contact
Machine size	Measuring 55 cm in height × 45 cm in width × 40 cm in depth, its compact size saves laboratory and workshop space.
Machine weight	33 kg, lightweight and easy to transport, facilitating equipment placement and maintenance
Use power supply	220V, 50HZ

FAQ

Q:
Are you a factory or a trading company?

A:

We are a professional testing instrument manufacturer with over 20 years of experience, a national high-tech enterprise and a “Specialized, Sophisticated, Unique and New” certified enterprise.
Q:
What materials can your testing machines test?

A:

Our testing machines are suitable for peel,shear, tensile, release force and adhesive strength tests on adhesive tapes, self-adhesive labels, protective films, release papers, release films, foams, films, papers, rubbers and other materials.
Q:
Which international test standards do your equipment comply with?

A:

Our equipment supports major international standards including ASTM D3330, FINAT, GB/T 2792, PSTC, etc.
Q:
Is the software in Chinese or English?

A:

The software supports both Chinese and English interfaces, switchable freely for global users.
Q:
Is the operation difficult? Do you provide training?

A:

The interface is user-friendly. We provide free online training, video tutorials and English manuals.

Q:
How long is the warranty period?

A:

12-month warranty for the whole machine, with lifetime technical support.
Q:
How to solve equipment failures?

A:

We provide fast response via remote assistance, telephone and email. On-site service can be arranged if required.
Q:
Can accessories and fixtures be purchased separately

A:

Yes, we supply original accessories, fixtures and wearing parts for a long term.
