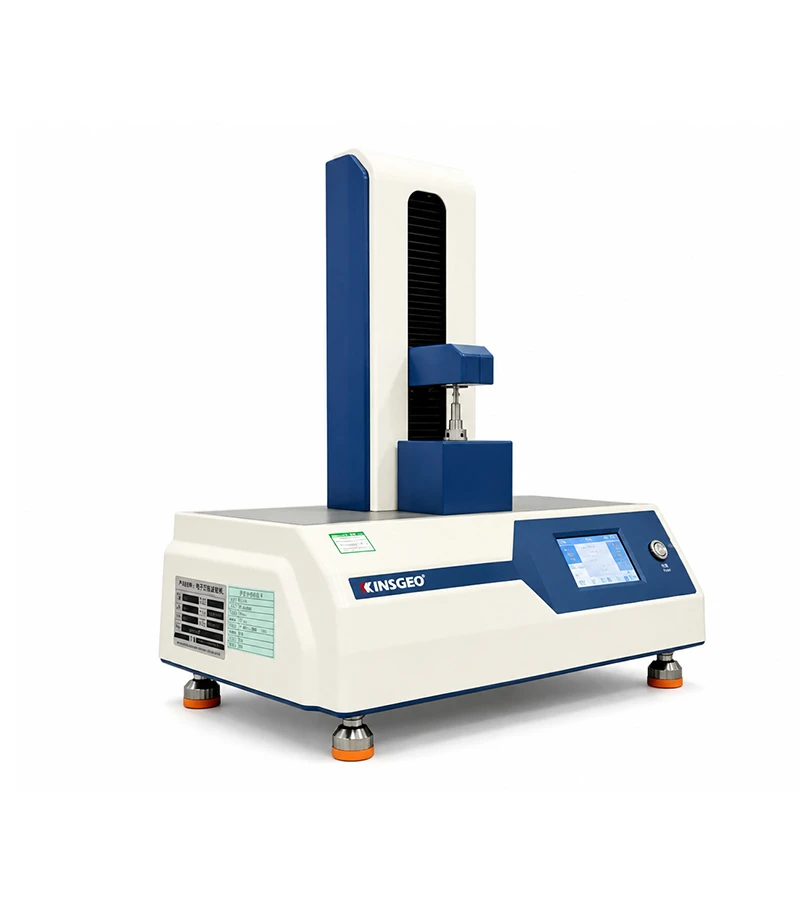

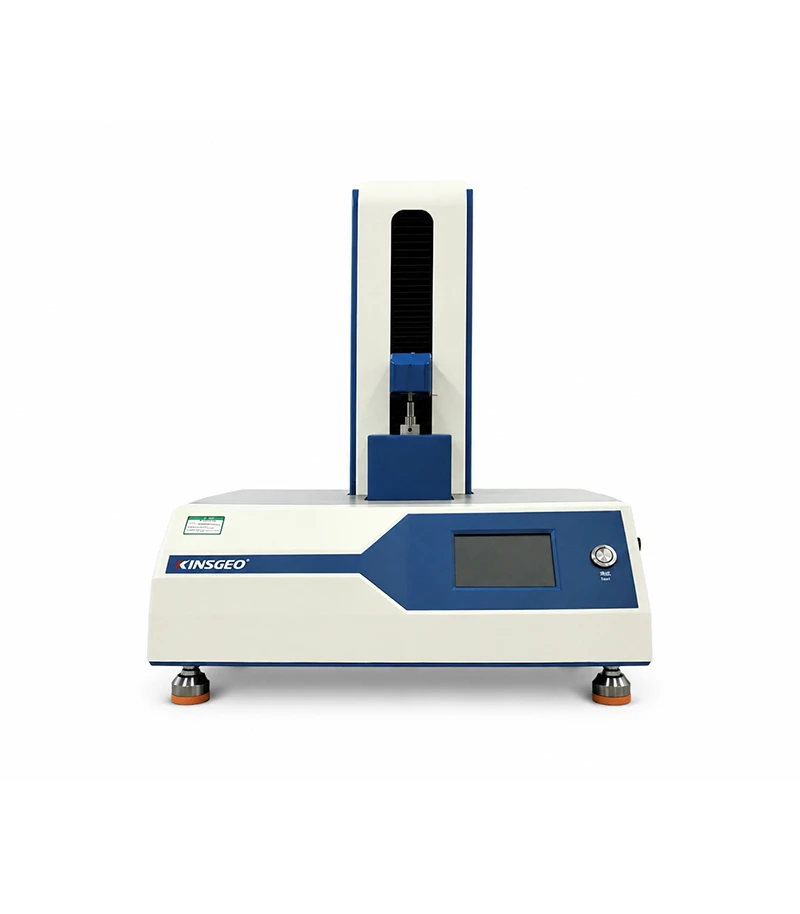

KJ-6034N Computerized Probe Method Initial Adhesion Tester

The KJ-6034N computerized probe-based initial adhesion tester, featuring a compact and refined structural design with imported core components, delivers a high-precision and highly stable solution for initial adhesion testing. Specifically designed for accurate measurement of initial adhesion force in various adhesive products, it fully complies with international authoritative standards and is widely applicable in diverse scenarios such as research institutions, import-export enterprises, and inspection and quarantine agencies, serving as a core enabling device for R&D, quality control, and compliance testing in the adhesive industry.

Inquire Now Next Product

Core Advantages

Imported Configuration, Precise and Efficient

● Imported core components: Equipped with imported high-precision sensors and premium motors, the system operates smoothly and silently, significantly enhancing the accuracy and repeatability of detection data. This eliminates testing deviations caused by insufficient component precision in traditional equipment, ensuring every dataset possesses reliable reference value.

● Compact and space-efficient design: The device features a sleek and refined construction that occupies minimal space, facilitating flexible placement in laboratories and testing rooms. Its lightweight design ensures easy transportation and maintenance, making it suitable for various application scenarios.

● Standard Compliance: Strictly adheres to the ASTM D2979 international standard, featuring standardized testing procedures with traceable and comparable data, fully meeting compliance requirements for professional applications such as import/export inspection and scientific validation.

Scope of Use

Multi-scenario compatibility and multi-category coverage

The device has a wide range of applications, with its core focus on determining the initial adhesive strength of various adhesive products, while also being compatible with different user scenarios.

1. Test Object

Primarily used for initial adhesion strength testing of various products such as tapes and adhesives, covering multiple categories including electronic tapes, self-adhesive labels, medical patches, and industrial adhesives. It enables precise quantification of product initial adhesion performance, providing a scientific basis for quality assessment.

KJ-6034N Computerized Probe Method Initial Adhesion Tester

2. Applicable Subject (Test Software)

The system serves research institutions (for adhesive formulation development and performance validation), adhesive import/export enterprises (to meet export compliance testing and product quality control requirements), and inspection and quarantine authorities (for product quality sampling inspections and compliance audits), comprehensively addressing professional testing needs.

Testing Principle

Scientifically Rigorous and Automated with Controllable Process (Testing Procedure)

The device adheres to the core logic of the probe method for initial adhesion force testing, featuring a scientifically standardized and highly automated process that effectively minimizes human operational errors and ensures stable, reliable test results. The specific testing principle is as follows:

The probe is brought into full contact with the test sample at a fixed speed and held stationary for 1 second to ensure thorough contact. The instrument then automatically reverses its motion, driving the probe away from the sample at a constant speed until complete separation occurs. The maximum force generated during this process represents the initial adhesive force of the probe on the test sample. The entire testing procedure is fully automated, requiring no manual intervention, and accurately replicates the actual initial adhesion conditions encountered during product use, ensuring the authenticity and accuracy of the test results.

Core Technical Parameters

Precise and Controllable, Suitable for Professional Testing

Parameter Name	Specific Specifications
Measuring range	0–100 N, meeting the initial adhesion testing requirements for most adhesive products and compatible with products of various viscosity grades.
Certainty of measurement	The measurement error is less than ±1%. Paired with imported sensors, the data is precise and the error is controllable.
End of test	Automatically record the maximum tensile force required for sample detachment from the probe, simultaneously document the mode of sample failure, ensuring complete and traceable data for subsequent analysis and archiving.
Measurement speed	600 mm/min (adjustable), flexibly accommodating testing requirements for various samples to ensure testing versatility
Speed Accuracy	The error is within ±1%, with stable operation and precise, controllable speed, ensuring consistent testing results.
Probe Specifications	A 5 mm diameter planar precision grinding probe with high grinding accuracy and uniform contact, eliminating the impact of probe wear on test results.
Fitting plate weight	200 g, meeting standard requirements, ensuring uniform contact pressure between the probe and the sample to guarantee standardized testing.
Machine size	Measuring 55 cm in height × 30 cm in width × 35 cm in depth, it features a compact structure that saves storage space and is suitable for various laboratory settings.
Machine weight	23 kg, lightweight and easy to transport, facilitating equipment placement, movement, and daily maintenance
Use power supply	220V, 50HZ

Do We Need To Offer You Any Assistance?

Looking ahead, Guangdong Kejian Instrument Co., Ltd. will continue to uphold the core philosophy

+86 139 2947 7992

+86 139 2551 9875
sale056@kejian-tech.com

sale069@kejian-tech.com

Free consultation. No commitment required.

FAQ

Q:
Are you a factory or a trading company?

A:

We are a professional testing instrument manufacturer with over 20 years of experience, a national high-tech enterprise and a “Specialized, Sophisticated, Unique and New” certified enterprise.
Q:
What materials can your testing machines test?

A:

Our testing machines are suitable for peel,shear, tensile, release force and adhesive strength tests on adhesive tapes, self-adhesive labels, protective films, release papers, release films, foams, films, papers, rubbers and other materials.
Q:
Which international test standards do your equipment comply with?

A:

Our equipment supports major international standards including ASTM D3330, FINAT, GB/T 2792, PSTC, etc.
Q:
Is the software in Chinese or English?

A:

The software supports both Chinese and English interfaces, switchable freely for global users.
Q:
Is the operation difficult? Do you provide training?

A:

The interface is user-friendly. We provide free online training, video tutorials and English manuals.

Q:
How long is the warranty period?

A:

12-month warranty for the whole machine, with lifetime technical support.
Q:
How to solve equipment failures?

A:

We provide fast response via remote assistance, telephone and email. On-site service can be arranged if required.
Q:
Can accessories and fixtures be purchased separately

A:

Yes, we supply original accessories, fixtures and wearing parts for a long term.
